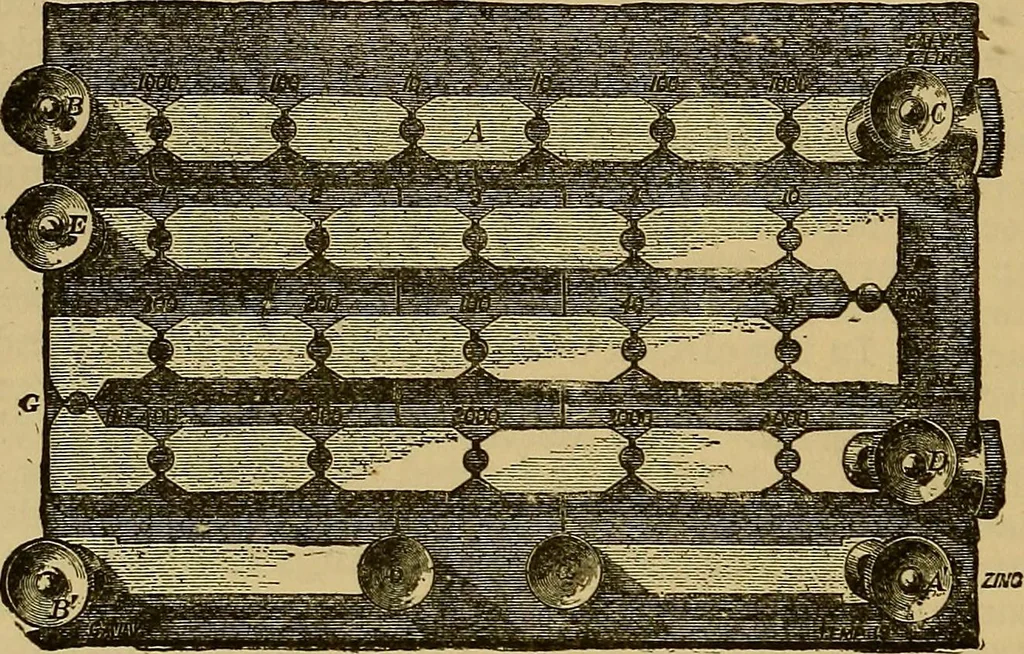

and the connections are brought into theexact relations indicated in the conventional diagram of Wheat-stones bridge. (See Wheatstone^s Bridge.) Referring to the cut, the battery wire, say from the zinc plate,connects at ^S thereby reaching A^ its true connecting point. ToB^ one end of the… … Fig. 65. Top of Box Bridge. resistance. The other end of the unknown resistance, and theother end of the battery wire, in this case from the carbon plate,connect to D. At G is an infinity plug, as it is called. When outit breaks the circuit. In use after the connections are made the key is…
