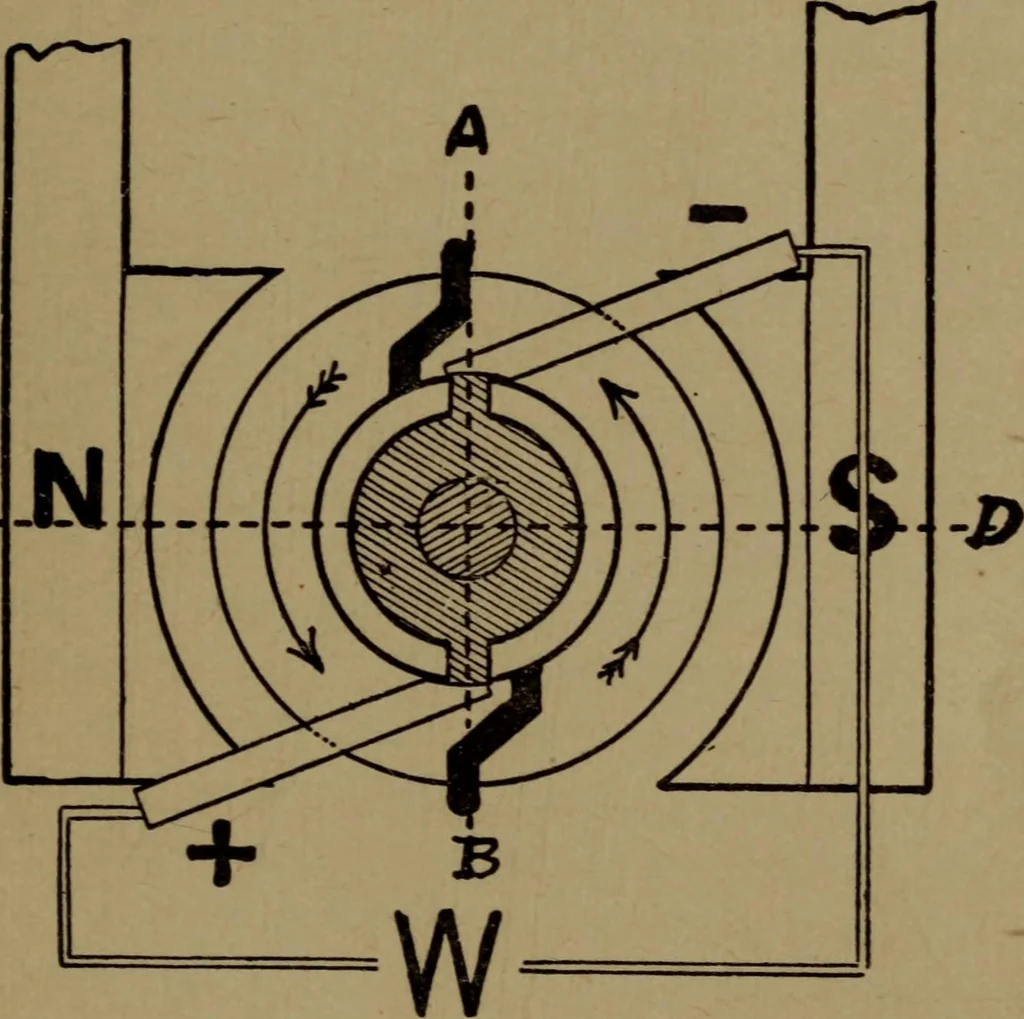

osite direction. Thus in a THEORY O^ DYNAMOS. 23 complete revolution, the current will flow first in onedirection, and then reverse and flow in an opposite direc-tion, and in this way produces what is known as an alter-nating current. This alternating type of current can onlybe used for certain… … FIGURE 5.—SINGlvE lyOOP ARMATURE ON IRON COREWITH COMMUTATOR AND BRUSHES. mutator may be understood from study of figure 5,which shows the same loopx>f wire between the poles ofa magnet, as v/as shown in figure 4, with the exceptionthat instead of rings mounted in the shaft, with brushes 24…
