Stationary steam engines; especially as adapted to electric lighting purposes (1884)
Thurston, Robert Henry, 1839-1903 · New York, J. Wiley & sons · leaf 53

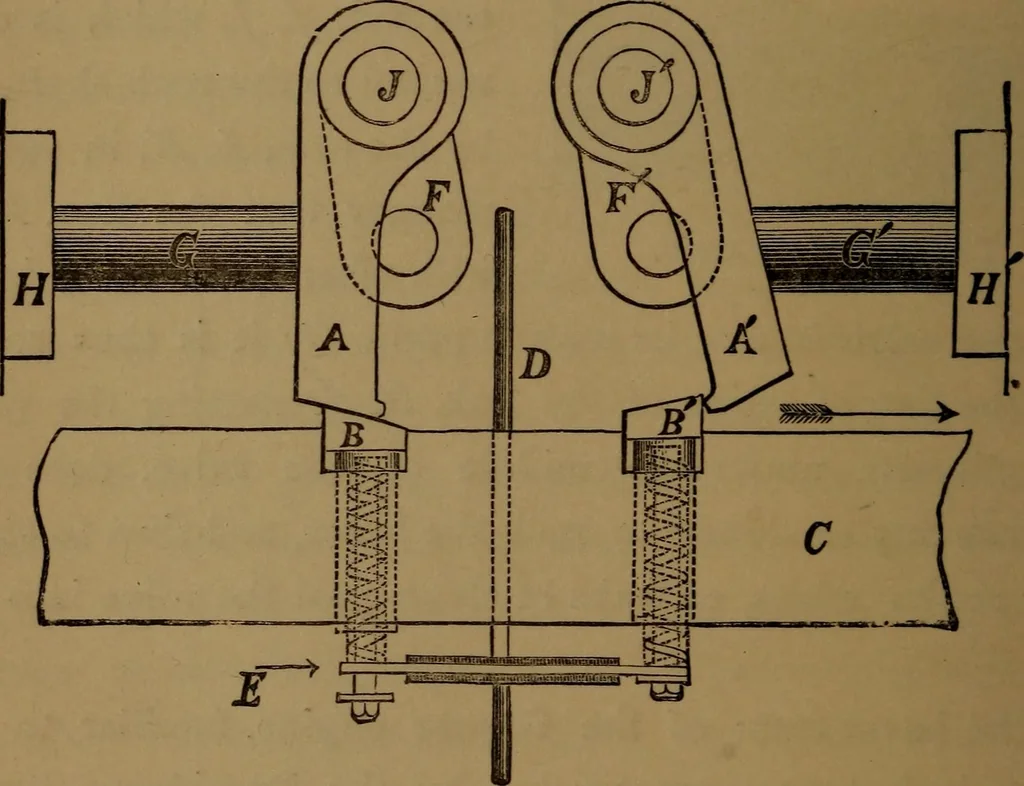

ntages over the old,in keeping the working parts, and especially the joints, outof the steam space. The exhaust valves are gridiron slides,set to travel across the line of the cylinder, and driven from 1. Supplied by D. Apj leton & Co. 44 STEAM ENGINES FOR a horizontal rock-shaft, extending… … Greene Trip Motion. The tappets, A, A, are carried by the rock-shafts, J,J, which, in turn, drive the arms, Fy Fy and the valvesattached to the stems, G, G, pascing through the stuffingboxes, H, H; the tappets, B, I>, engage these rock-levers,and are adjusted vertically by the governor rod, Dy…
Steam-engines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
