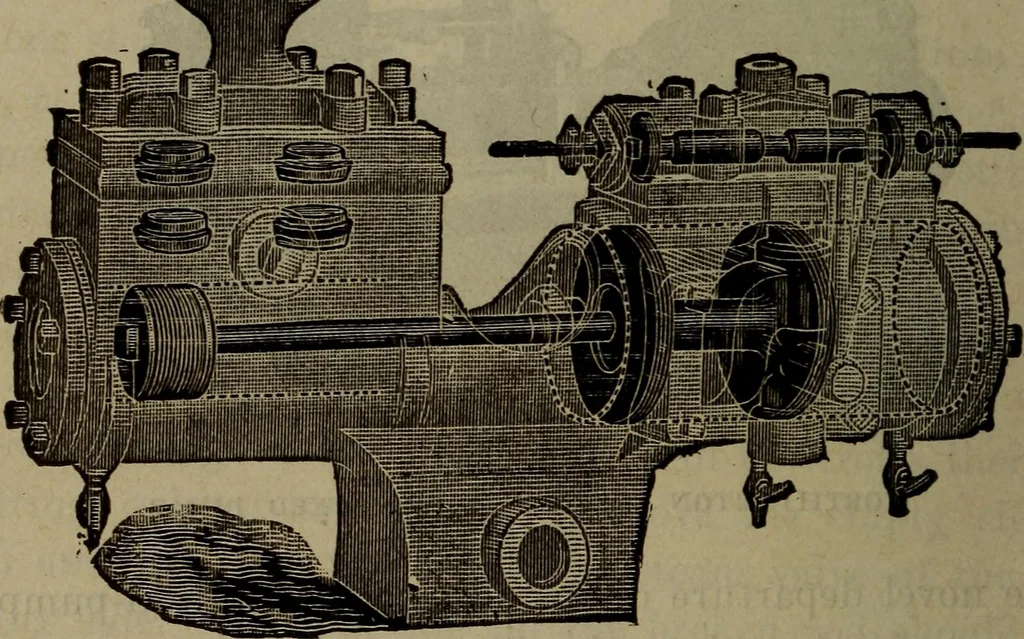

of the rotative type, there being one steam valvefor the high-pressure cylinders, and two each for the low-pressure cylinders. The arrangement of two steam Valves L 154 Steam Engineering in the low-pressure steam cylinders reduces the clearanceto the lowest possible amount. The water end is of the… … Fig. 61phantom view of marsh independent steam pump* The boiler pressure carried is 175 pounds per squareinch. The pump operates against a pressure of 225 poundsper square inch in the feed-water pipe system to the boilers.This feed-water system is provided with a relief valve, andthe pump is…
