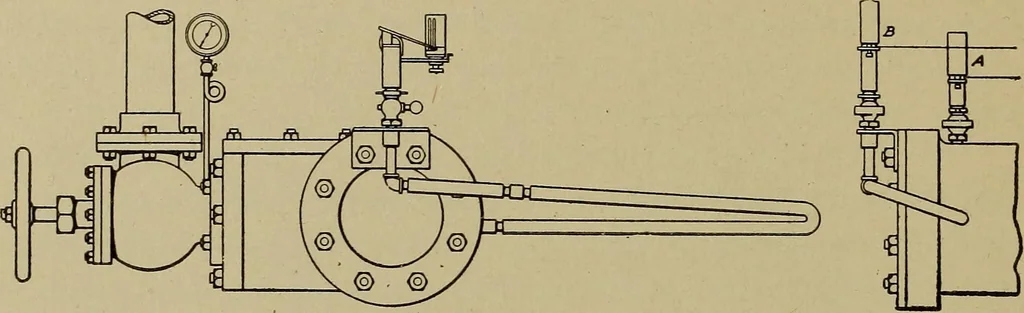

he indicator. It should also havea hole in one side for the purpose of freeing the indicator and itsconnections from any water that may come over with the steam.Avoid Long Pipe Connection. Long connections between theindicator and the engine cylinder should be avoided in all cases. 16 STEAM ENGINE… … Fig. 13. Method of Attaching Indicator Piping to Engine Cylinder nary pressures and speeds, a length of pipe over 3 feet in length ?odistorts the card that the results obtained are useless except forapproximate work. ■P/P£ CARD<CYJ-/NDER CARD
