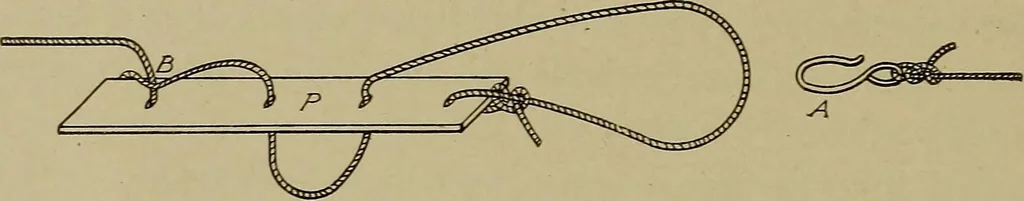

be as short as possible. If it is impos-sible to use a short cord, then a fine steel or brass wire should beused. The builders of indicators usually furnish a braided cordwhich has been well stretched and which gives good results. Some-times it is convenient to make a loop in the end of the cord,… … Fig. 34. Device for Altering Length of Indicator Cord reducing motion which passes through the holes in the plate P, asshown, is adjusted in length by slacking it at the point B and slip-ping the plate along the cord. To avoid an accident, in the way ofinjuring the indicator or the reducing motion,…
