Ludy, Llewellyn V., 1875- [from old catalog], American Technical Society · Chicago, American technical society · leaf 82

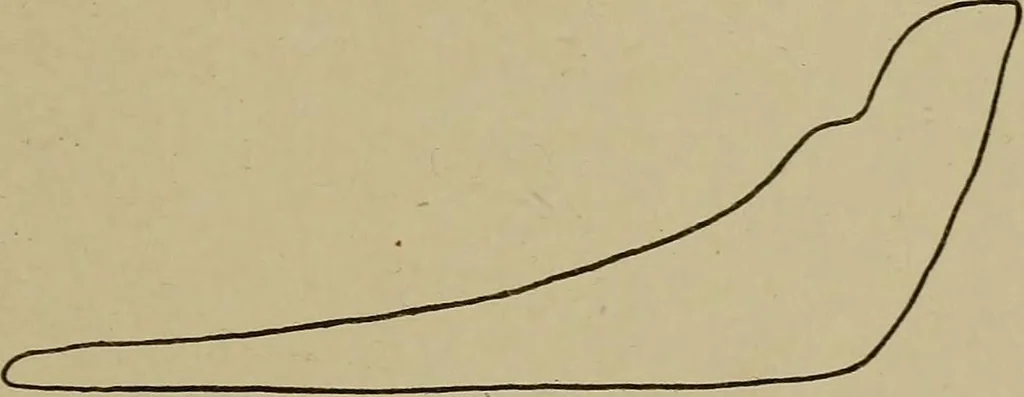

Fig. 50. Effect on Diagram of Lost Motionin Indicator Connections Variable Cut-Off. In Fig. 52 is shown a card taken from a Buck-eye engine at a speed below that at which the governor sets. Withthe engine working under this condition, the greatest c.o. is obtained. … Fig. 51. Diagram Showing Effect of Lost Motionin Indicator Connections Fig. 53 illustrates a card taken from the same engine, running at 200r.p.m. and with a load slightly under full load. Fig. 54 illustratesanother card taken from the same engine operating under a very lightload. The c.o. occurs…
Indicators for steam-engines · Steam-engines
