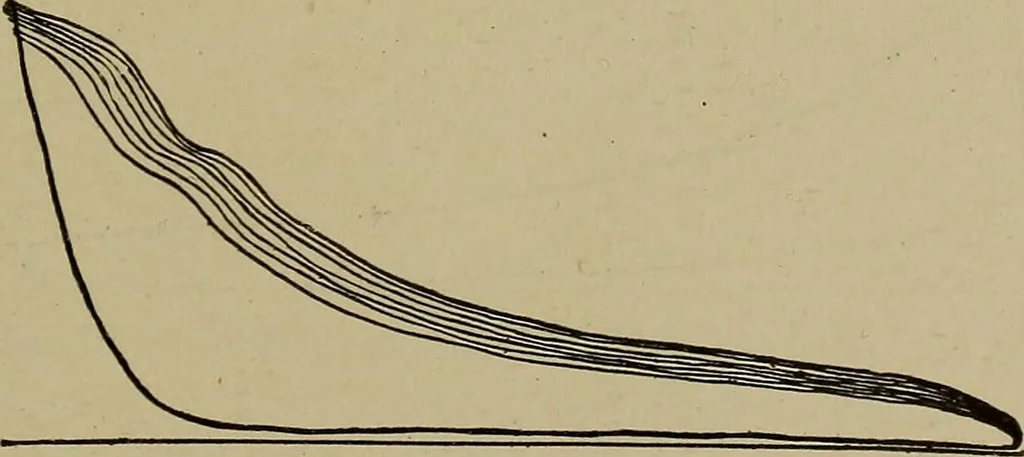

Fig. 56. Card Showing Slipping Indicator Cord is not true, however, of the cut-off governor, because in this type, bychanging the point of c.o., the other events of the stroke are affectedin some degree. … Fig. 57. Card Showing Effect of Changing Cut-Off Faulty Valve Arrangement. A typical card taken from a StraightLine engine, running at 270 r.p.m. at full load, is shown in Fig. 59. 72 STEAM ENGINE INDICATORS Aside from illustrating the form of card that this particular type ofengine gives, it is of…
