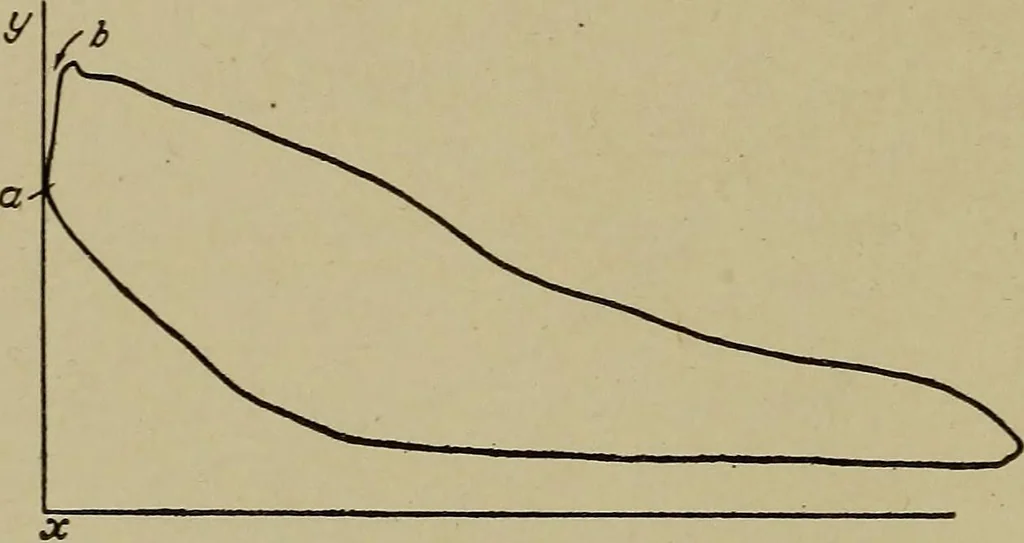

Fig. 58. Effect on Card by Throttling the Engine at the end of the stroke as indicated at a. Late admission is indi-cated by the sloping admission line, giving the space b between the … Fig. 59. Effect of Faulty Valve Arrangement end of the stroke and the point where full admission occurs. Earlyadmission would be indicated in the same way, the exception being
