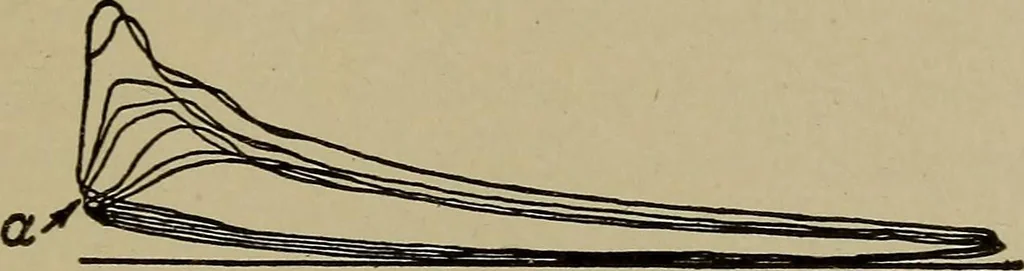

e same engine, but operating under different con-ditions. It shows the change in the diagram produced by throttlingthe mixture for various loads. This card also shows that the indi-cator cord stretched slightly, otherwise the different maximum com-pression points a would have fallen on a line… … Fig. 61. Change in Gas. Engine Diagram byThrottling the Mixture for Various Loads Cards Showing Valve Troubles. It is now desired to directattention directly to defects in valve-setting as shown by theindicator diagram, to the end that suggestions may be given as to howto properly adjust the valves…
