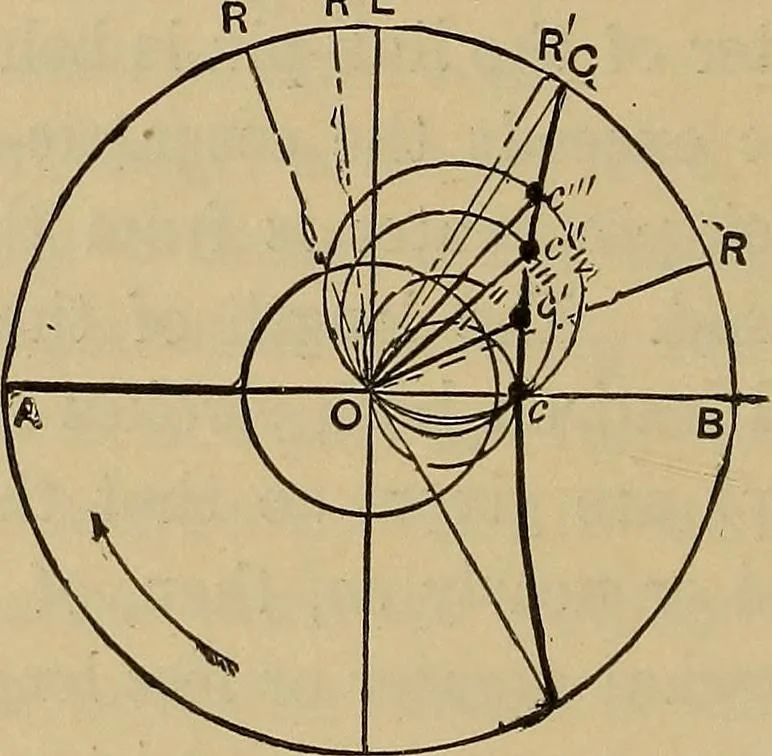

Fig. 189. the valve will be that due to an eccentric whose throw is Octand whose angular advance is LOc, where Cc is 1/8 of CcD. If the rods are crossed the construction is practically the same,but the curvature of the arc CcD is reversed as in Fig. 190. fTl … Fig. 190. Ex. 125. Design a Stephenson link for a tug of a vertical engine;boiler-pressure, 100 pounds; cut-off, 3/4 stroke; jet condenser, 26vacuum; 125 revolutions; lead, 1/16; maximum port-opening, 3/4.Connecting-rod = 5 cranks. Assume position of reverse-shaft andother required data. Buckeye…
