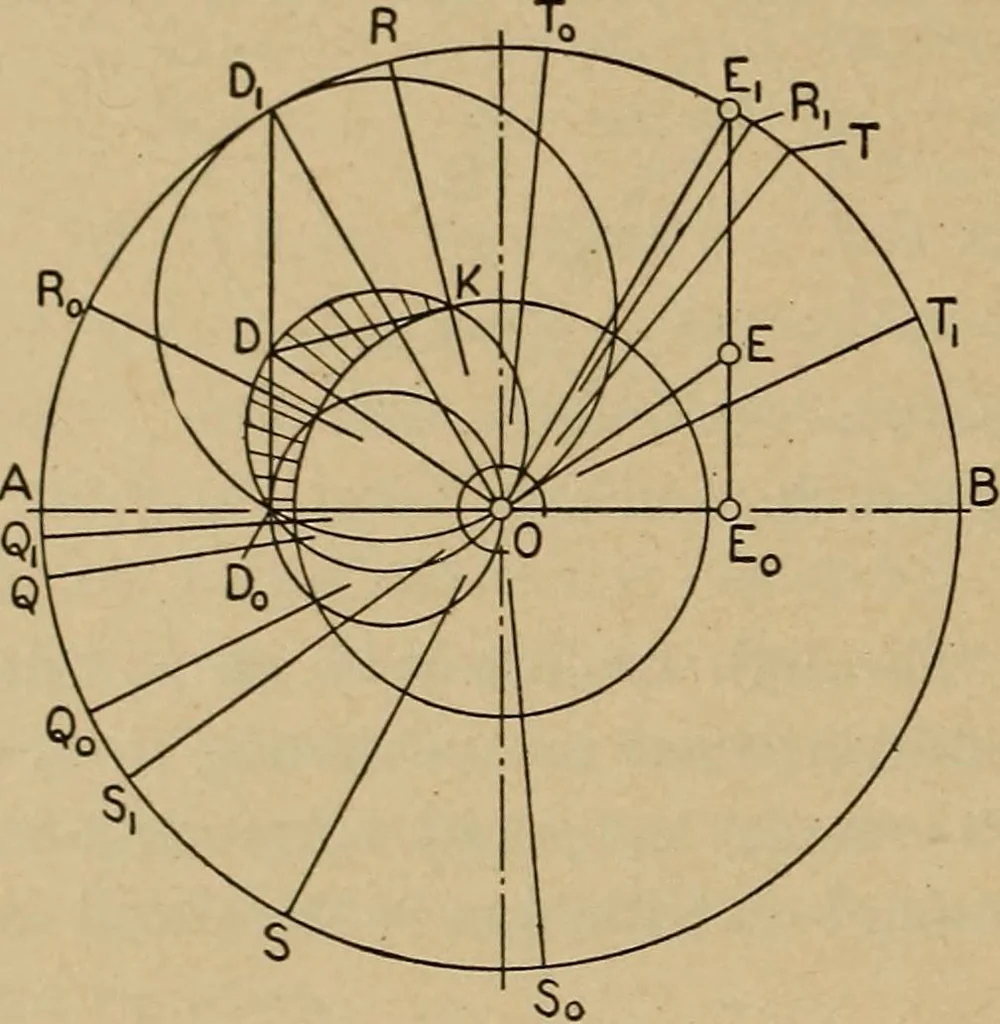

ion all taken up in one direction. The influence of rod swing can be directly shown on the Reuleauxdiagram, by substituting for the straight reference fine MN in Fig. 221an arc with the rod length I as radius — this being analogous to thecurved tangent arcs in Fig. 163. The lap lines will then be… … § 39. The Shifting Eccentric: Variable Steam Distribution (a) Moving the Eccentric Center. — Following the line of de-velopment suggested by Fig. 226 III and IV, and carried forward inRelation 3 under Fig. 231, we see that if the center of the eccentric beshifted along a hne at right angles to the…
