Creighton, William Henry Paul, 1859- · New York, J. Wiley & sons; [etc., etc.] · leaf 388

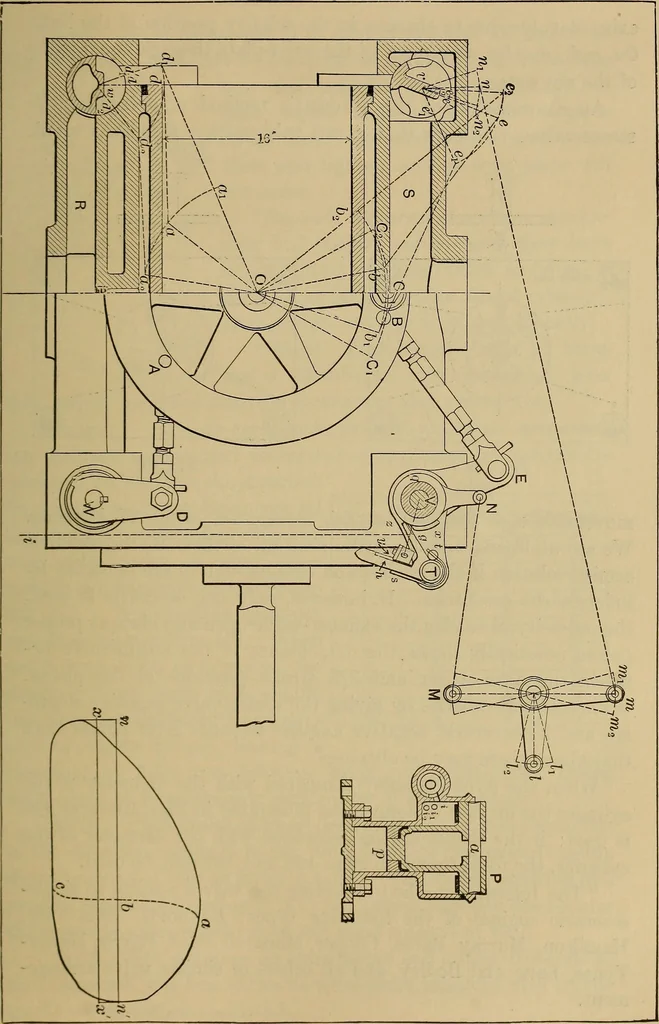

age of links. It is desirable that a valve shouldopen and close rapidly; when wide open or shut the motion shouldbe as small and as slow as possible and the motion should be .aminimum when the maximum pressure is on the valve. The student should note the variation in steam-valve move-ment due to… … Fig. 195.—Corliss Engine. (From Peabodys Valve-gears.) 168 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. exhaust-valve due to changes in the relative position of the linksOa, aidi, diw for movement of the wrist-plate through equal paitsof the arc aid2. An examination of the automatic method of detaching…
Steam-engines · Heat-engines
