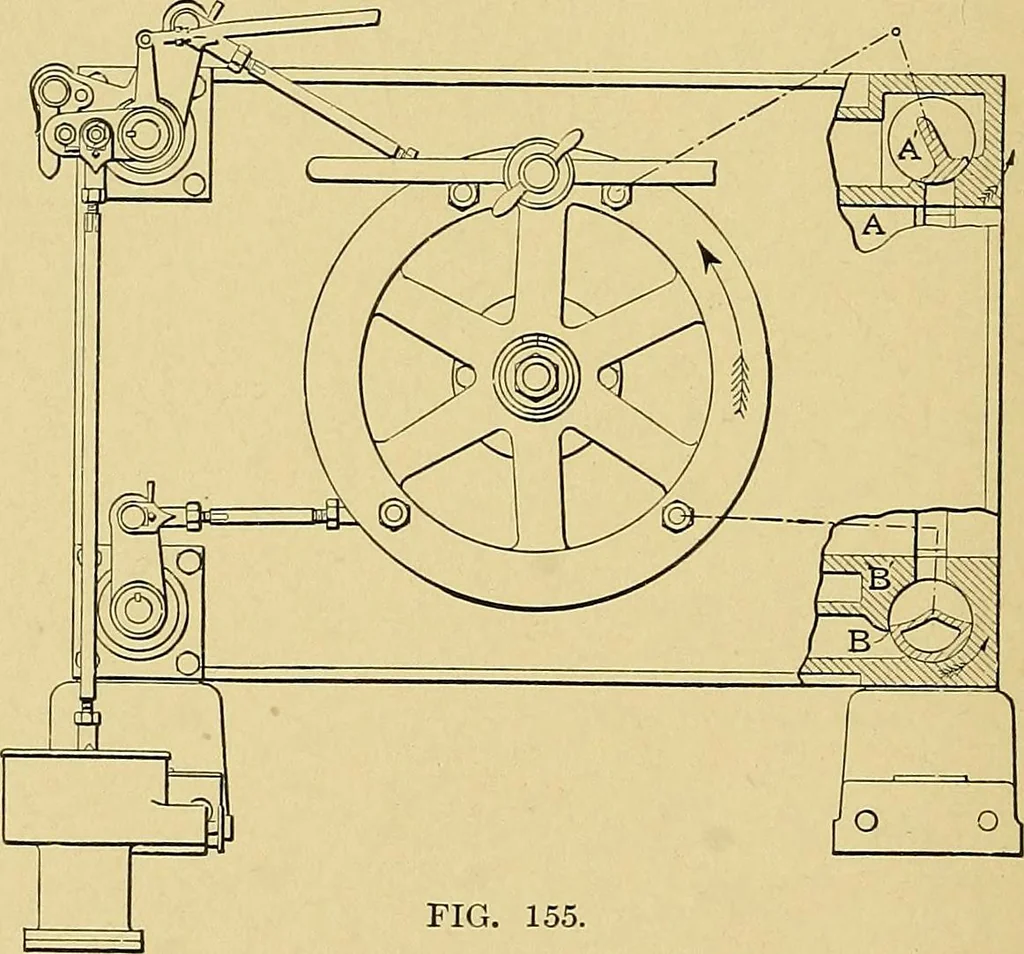

ill pre-vent racing on light loads and in process of preparing to throw the loadon the engine. XVI EEYNOLDS (1890) AND GIEDER FEAME COELISS ENGINES The steam valves of these engines admit the steam under the valveedges nearest the center of the cylinder and while the valve is travelingaway from the… … 155, at A and A. Logically, the steam exhausts over the edges of theexhaust valve and port nearest the cylinder center; these edges are shownat B and B, Eig. 155. In the figures the direction of travel of bothvalves when opening is indicated by arrows. The direction of travel of the wrist plate…
