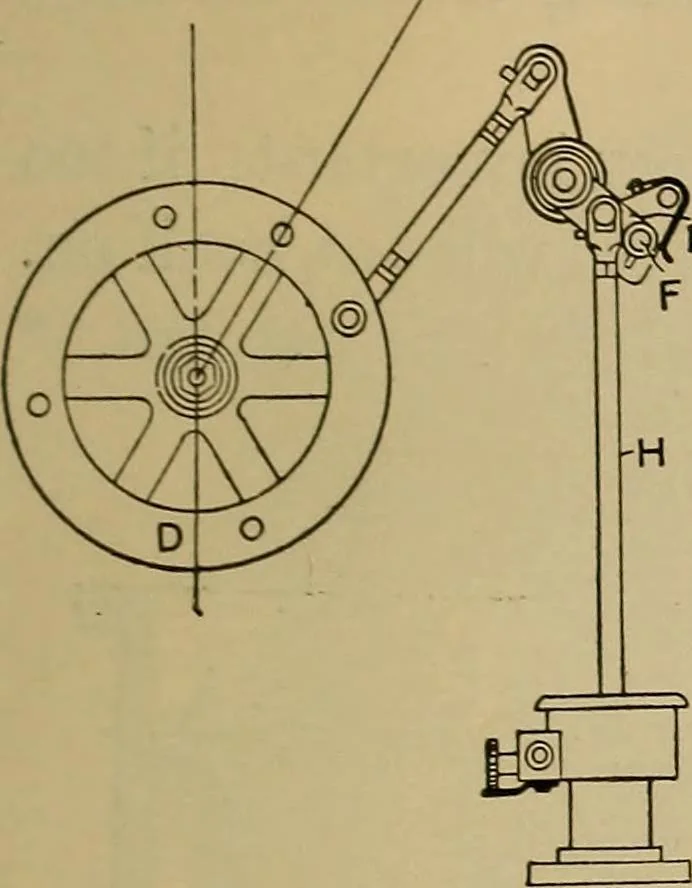

compared with the diameter of thecylinder the method of connection illustrated in Figs. 195 and 198is used; if the stroke is long compared with the diameter of thecylinder, the form shown in Figs. 196 and 197 may be used. The following method of setting the valves applies to single^eccentric… … Fig. 198. Table First. Place wrist-plate D in central position as shown inFig. 196, with both valves hooked on, so that mark on wrist-platehub will coincide with center mark onstud; loosen stud-nut and place a pieceof cardboard between washer and wrist-E plate and tighten so that wrist-plate…
