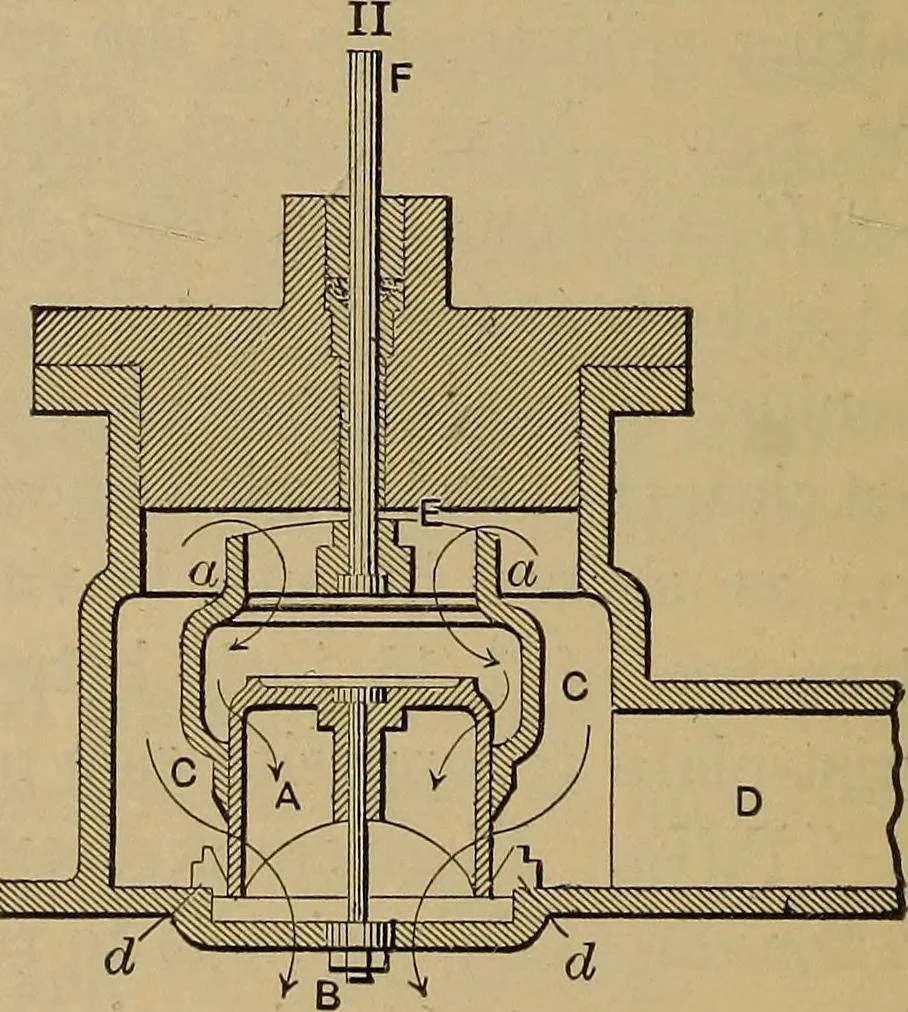

An illustration from The steam-engine and other heat-motors, 1909, leaf 391 — Fig. 201. … Fig. 202. a degree that it is still superheated on entering the cylinder.This is probably due to the cooling received by the cylinder-bore * Mechanics. REVOLUTION CONTROL. 371 during exhaust, whilst there is no such effect on certain parts ofthe surfaces rubbed by the valve. As the steam-valve must…
