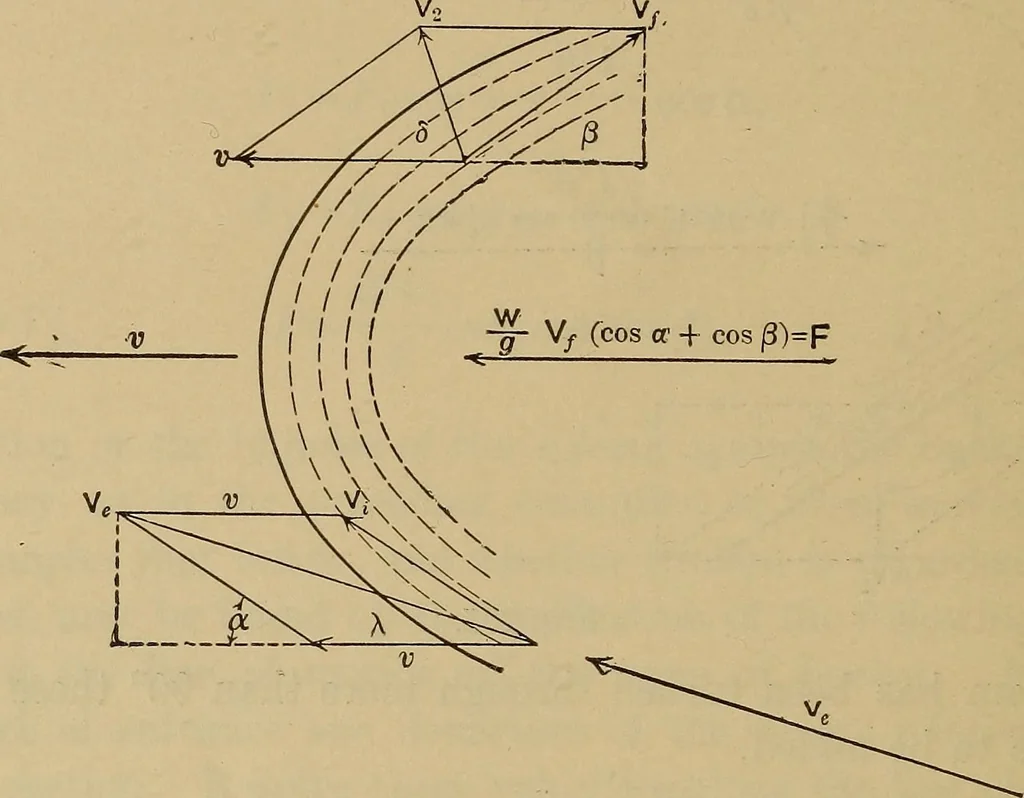

s no friction, v is the velocity ofthe bucket and V2 is the absolute final velocity of the stream. From the velocity diagrams, other equivalents may be obtainedfor F W F = —(Vt cos A-v + 7,cos/?), W F =—(Vecosk±V2cosd). 454 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. Blade Angles.—If the entering… … Fig. 236.the relations that exist between Ve, v and X. Hence a can bedetermined from the relation found as follows: v sin (a— X) sin a cos X— cos a sin X Ve sin awhence sin acot a= cot X— cos X—cot a sin X, VK sin X Shock is avoided, then, by having the entering angle of theback of the blade…
