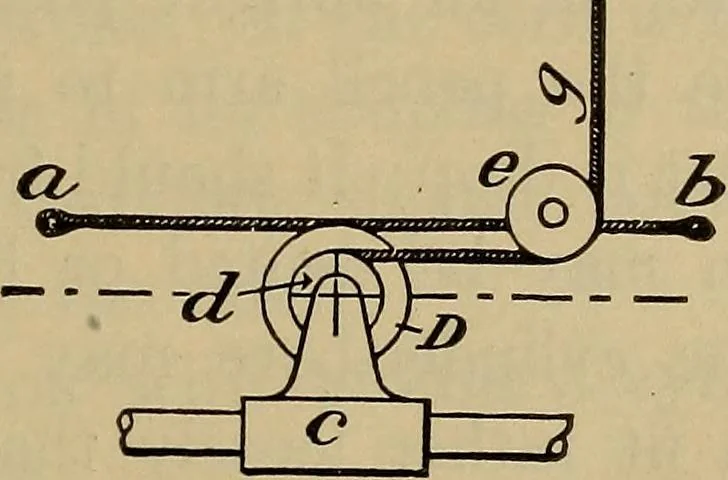

Fig. 35. … Fig. 36.pulley D. Indicator-cord is attached to small pulley d andpasses around guide-pulley e. D and d are attached to the cross-head. Diam. D-^diam. d=strokeof piston •*■ by the differencebetween stroke of piston and length of card. * The most satisfactory driving-rig for indicating seems tobe…
