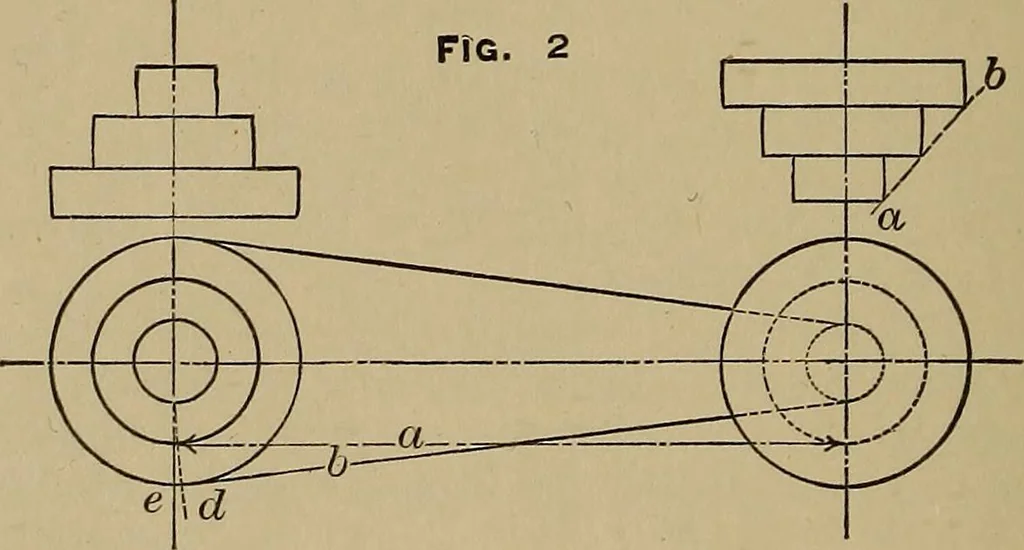

are of the same size ; but if the pulleys are of dif-ferent sizes, the diameter of the steps must be calculated fortwo steps as well as if there were more. It is evident from Fig. 2, that an open belt will be tighterover the largest and the smallest pulleys than it would be overthe two middle… … A convenient way to solve this is: First calculate pulleysthat will give the required speed, and of such sizes that the sumof the diameters of the two steps which are to work togetherAvill be equal, then calculate the length of the belt when layingon the largest and smallest steps, with a given…
