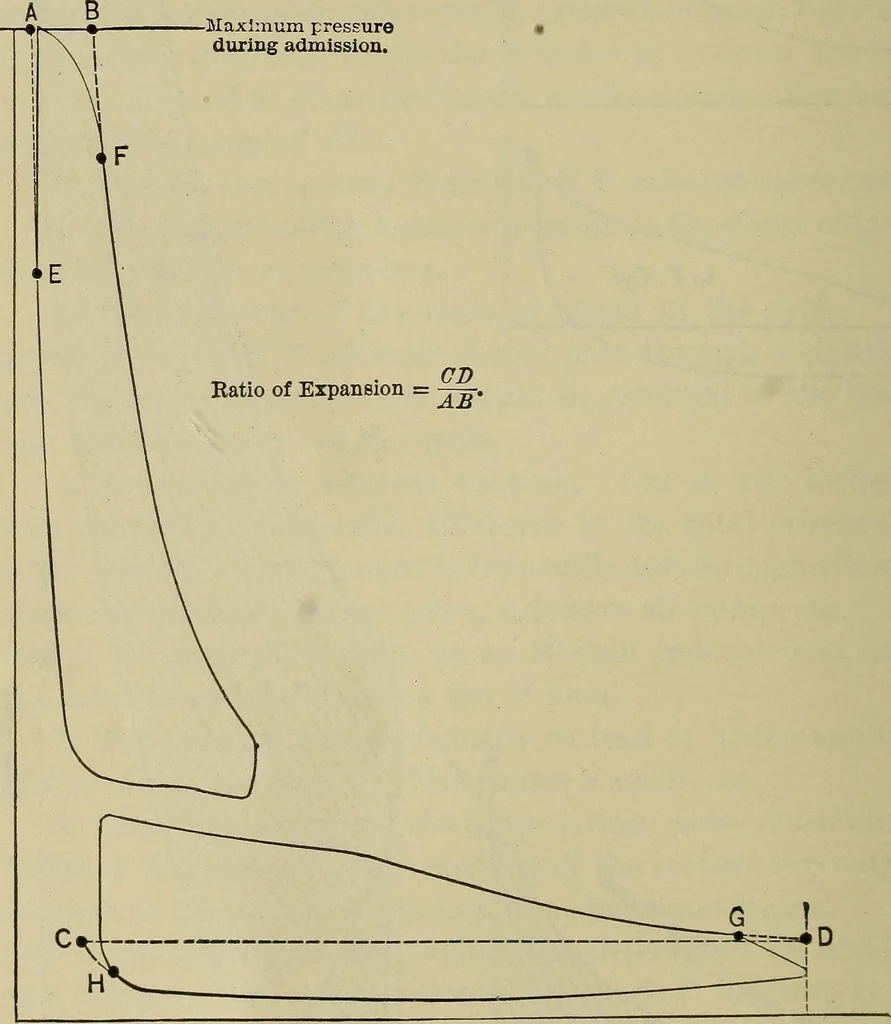

yr-33 -9\ 120 -110 100 Atmos. Line 0.33* Fig. 165 L21 322 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. latter being near the point of release, and the curves EA, FB, HCfand GD being hyperbolic. If it is desired to determine the ratiowithout laying out the combined diagram, it can be done by draw-ing on… … Com.on Eng. Testa Fig. 166. first by the ratio of the length of the high-pressure diagram to thedistance AB, and then by the ratio of the distance CD to thelength of the low-pressure diagram. Diagram Factor.—The Committees definition of the DiagramFactor was given in tne case of simple engines. In…
