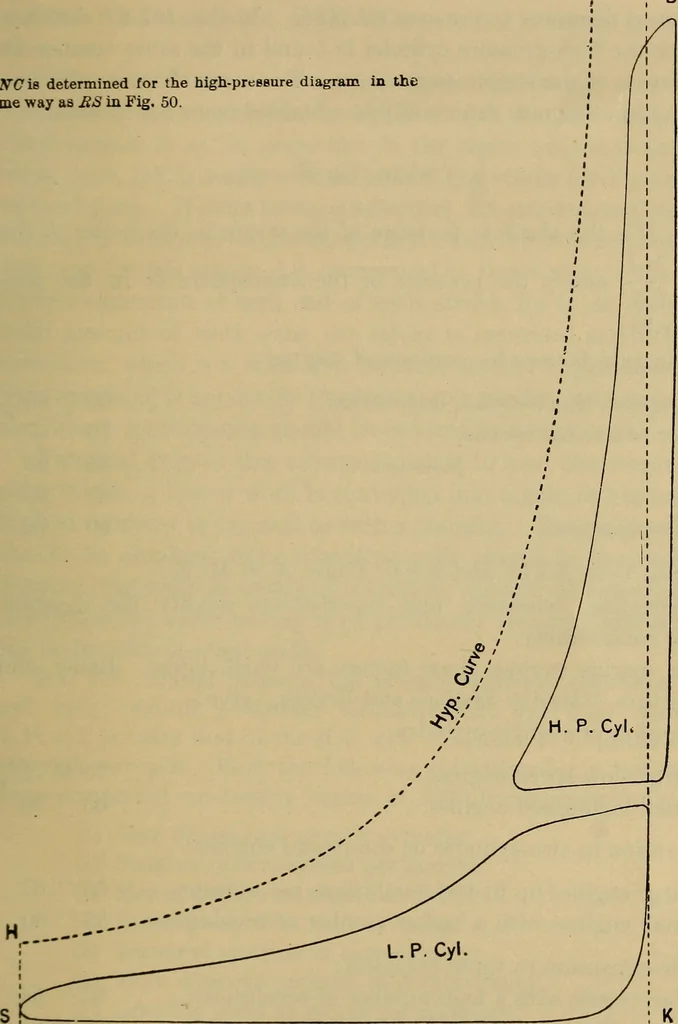

Com.on Eng. Tests Fig. 166. first by the ratio of the length of the high-pressure diagram to thedistance AB, and then by the ratio of the distance CD to thelength of the low-pressure diagram. Diagram Factor.—The Committees definition of the DiagramFactor was given in the case of simple engines. In… … ^j- Bo.ier Pressure J \ . ^ Zero Line of Pressure ^ JM Line of Pressurein Condenser Fig 167. 323 324 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. combined diagrams to the area CNHSK. In Fig. 167 the distanceCN for the high-pressure cylinder is found in the same manner asin the case of the simple engine.…
