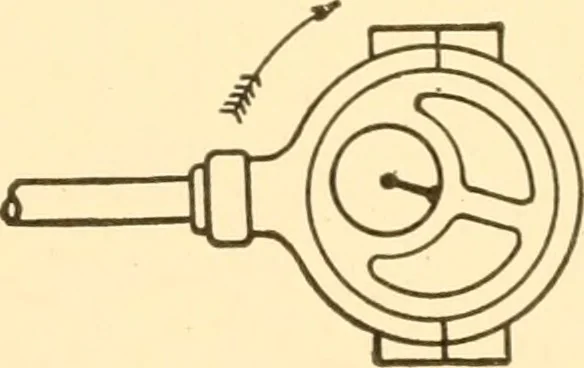

Fig. 5. of the shaft and in this way has a motion similar to that of acrank with a length NO. A crank which would give the samemotion as the eccentric is shown by the dotted lines. The motionof the eccentric is transmitted to the eccentric rod by means ofa strap, 8, which passes around the…
