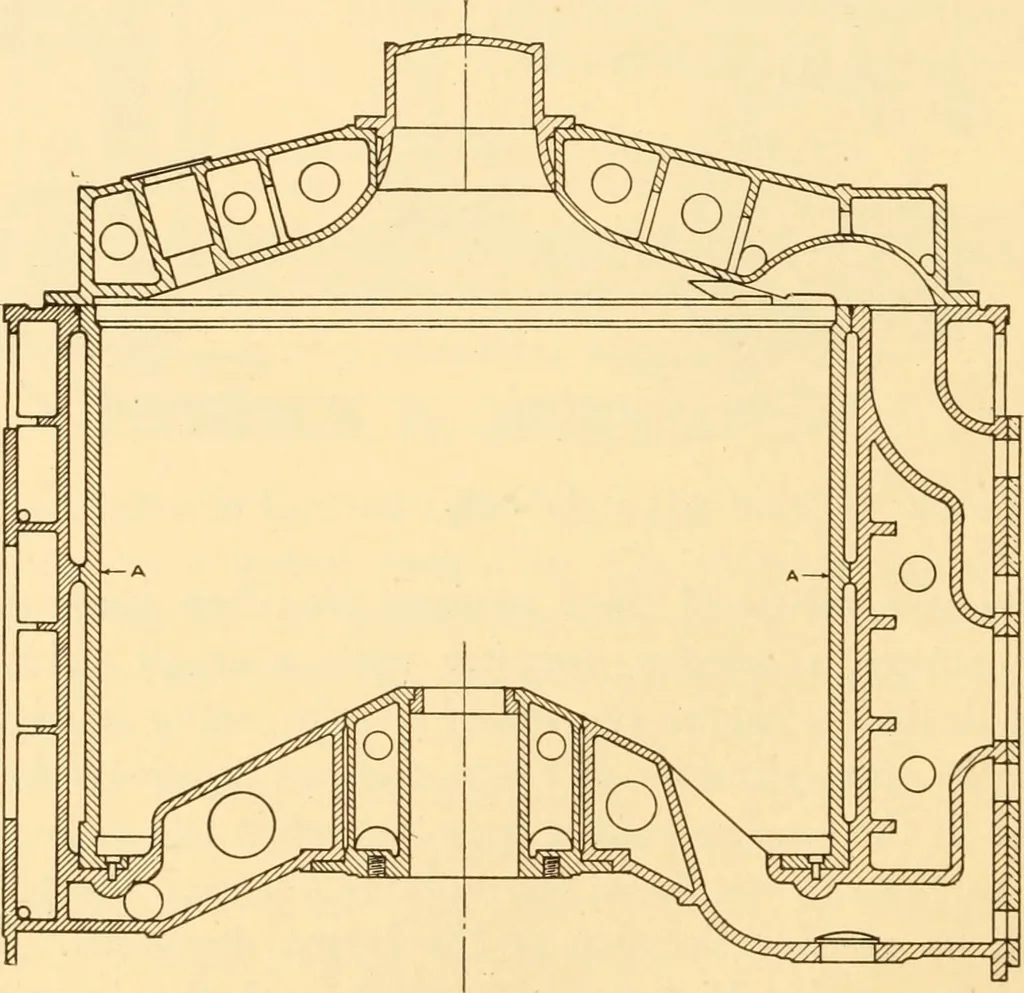

Fig. 24. cone-shaped to conform to the shape of the heads, this shape beingadopted to aid the drainage of water of condensation into theports. Having a liner in the cylinder, as indicated at A, simpHfies … Fig. 25. the work of casting the cylinder since the hner is cast separately,and permits of a sound and close grained hner being obtained whilethe cylinder proper is made of softer iron. The hner is fastened PARTS OF THE STEAM ENGINE 37 to the cylinder at the bottom by sunk head bolts in the…
