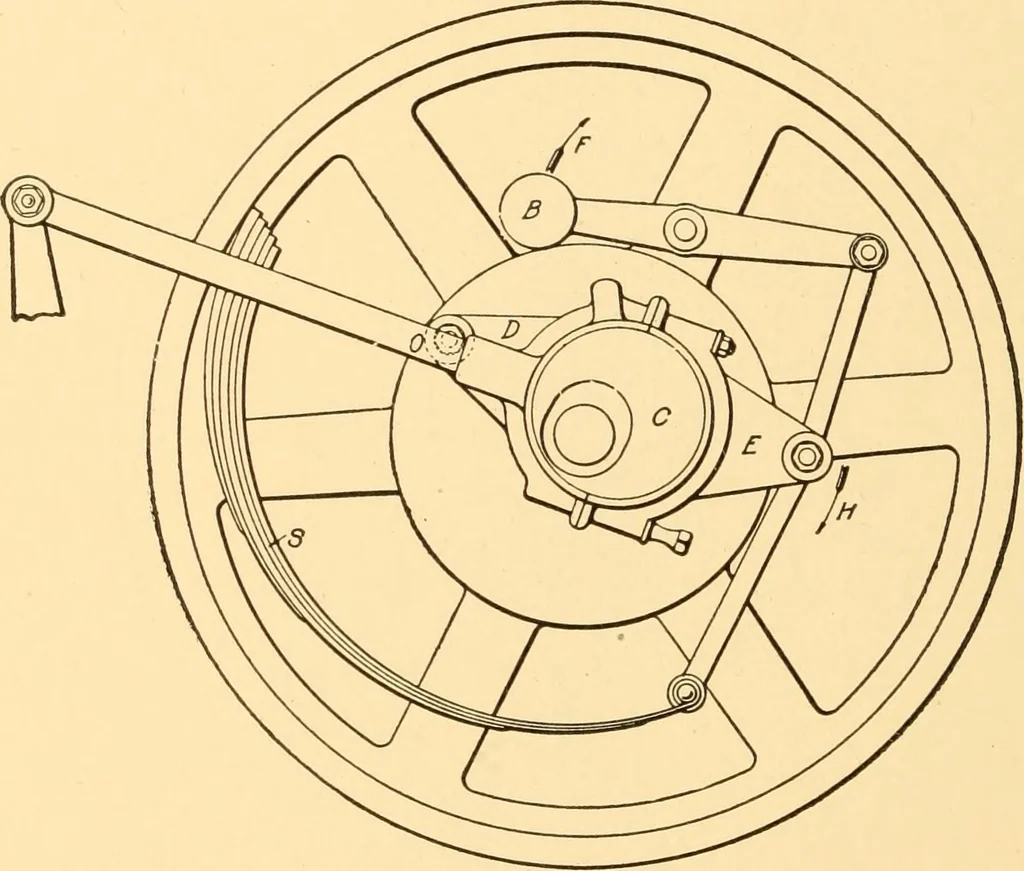

having theweights are connected to the collar on the loose eccentric C by meansof rods B B. When the weights move to the position indicated by the dottedlines, the eccentric is turned on the shaft about a quarter of a revo-lution in the direction in which the engine runs, that is, the eccentricis… … Fig. 94. Diagram Showing Action of Straight-Line Type of Shaft Governor advance would produce too great a variation of lead; but as thisengine has a separate valve for cut-off, admission is not altered bythe cut-off valve. The springs FF balance the centrifugal force of the weights;the weights A A…
