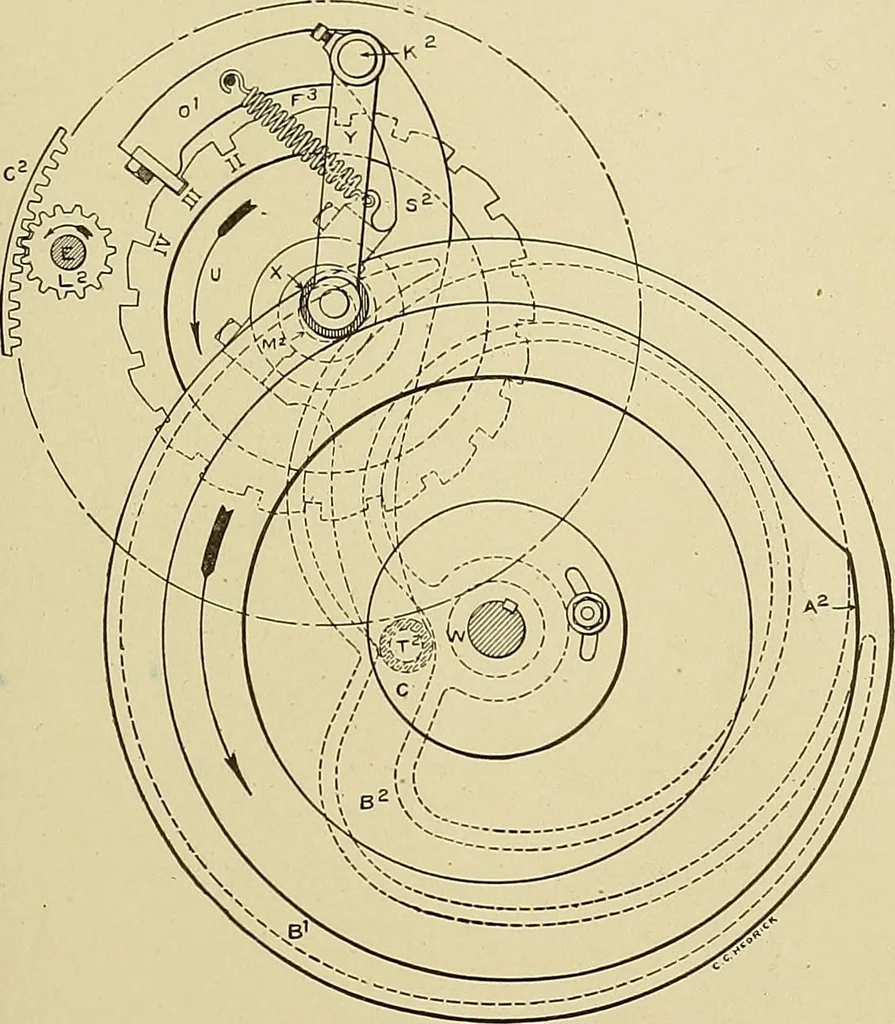

and G, to movearound E is shown in Fig. 181. Reference should be made first to Figs. 125 and 126 whichshow respectively the extreme forward and backward positions of COTTON SPINNING. 147 tlie detaching roll cam lever. On the cam shaft, W, is keyed acam, Bi, in one side of which is a groove, B^. In… … Fig. 126. Elevation Showing Detaching Eoll Cams. twenty teeth, or notches, and an internal gear, C^, of 138 teeth.A pawl, Qi, which is fastened to a stud, K2, and which is carriedby the upper end of the detaching roll cam lever, engages in thenotches of the notched Avheel and is held in contact…
