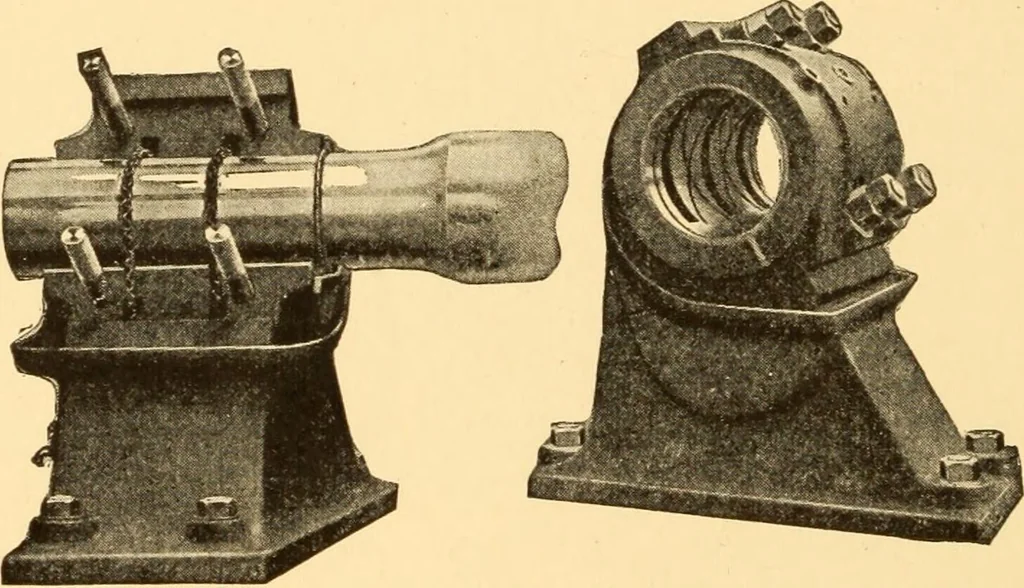

ne heavy bearing, such as thatshown in Fig. 18, as the flywheel end of the shaft, being subjected toforces acting in but one direction only, requires a much smallerbearing. This outer bearing, Fig. 19, is called an out-board bear-ing and is smaller and simpler in construction than the main… … Fig. 19. Out-Board Bearing of Simpler Construction than Main Bearing oil. Thus it is seen that oil is constantly brought in contact withthe bearing of the shaft. This same scheme of lubrication is alsoused for the main bearing. As the different types of engines areconsidered, the several types of…
