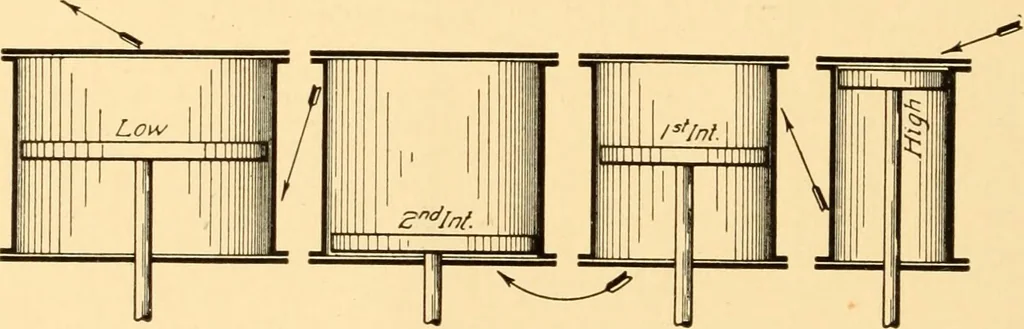

tems the cranks would be set at 120°, giving a more nearly uniformturning movement to the shaft, since each cylinder will developapproximately one-third the total horsepower of the engine. Still other arrangements of the cylinders of triple-expansionengines are found in Fig. 56. Arrangement A gives… … s Fig. 57. Diagram Showing Quadruple-Expansion Cylinder Arrangement set at 90° with the consequent uneven turning effect, but it is some-times resorted to because of lack of space for all three cylinders inline. Arrangement B is a triple-expansion engine, having six cylin-ders. Here the volume of…
