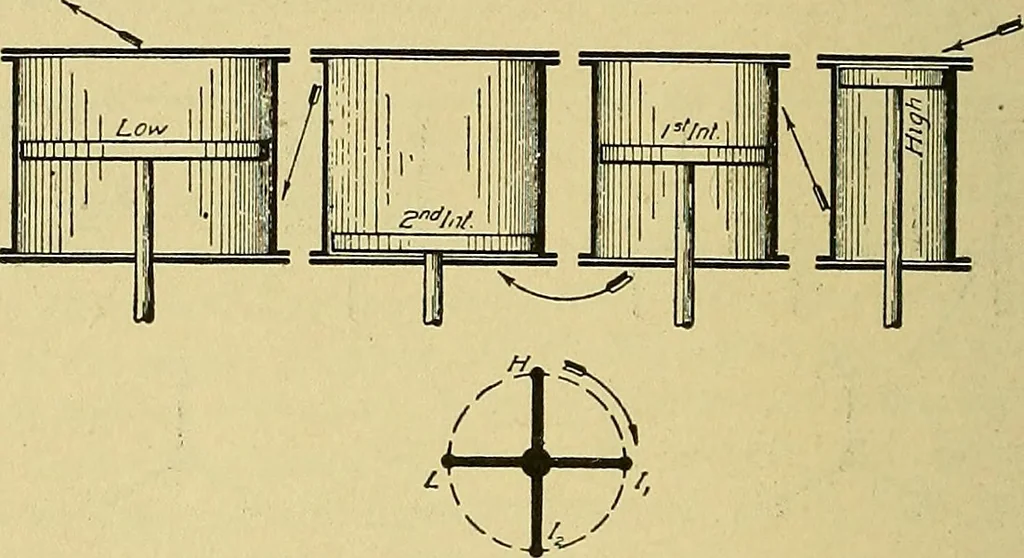

ems the cranks would be set at 120*, giving a more nearly uniformturning movement to the shaft, since each cylinder will developapproximately one-third the total horsepower of the engine. Still other arrangements of the cylinders of triple-e.xpansionengines are found in Fig. 56. Arrangement A gives… … Fig. 57 Diagram Showing Quadruple-Expansion Cylinder Arrangement set at 90° with the consequent uneven turnmg effect, but it is some-times resorted to because ,of lack of space for all three cylinders inline. Arrangement 5 is a triple-expansion engine, having six cylin-ders. Here the volume of one…
