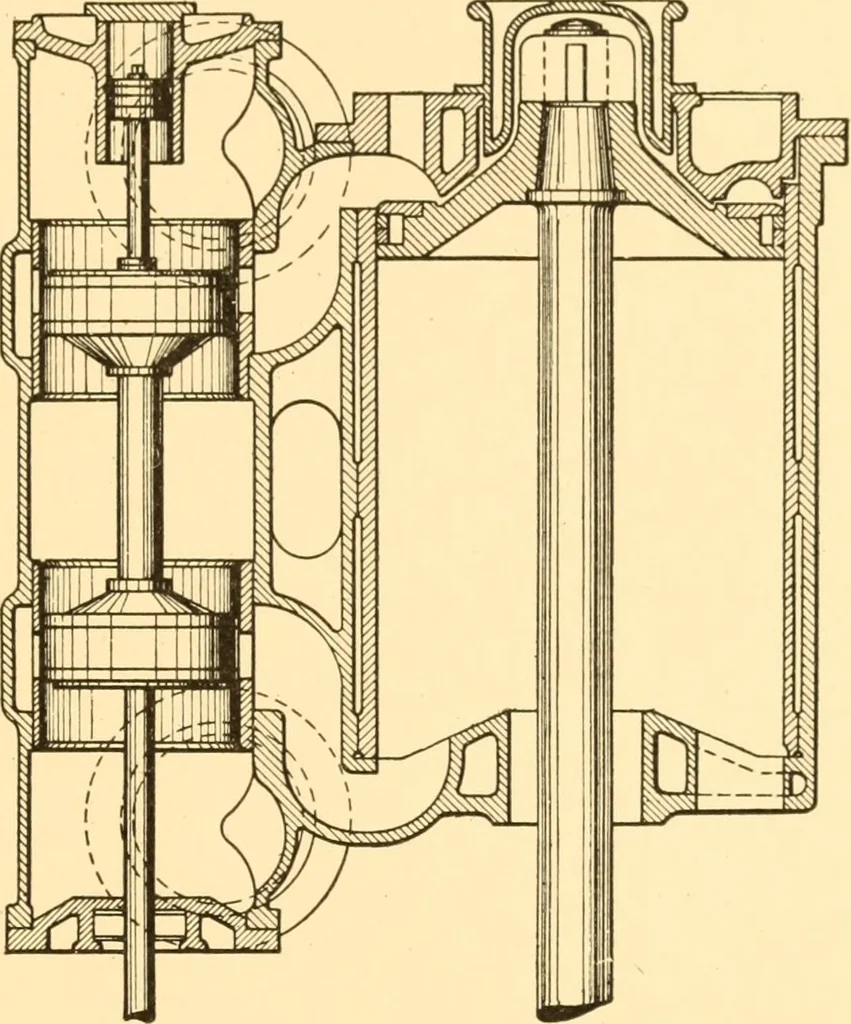

k, is shown in Fig. 60.The crosshead used with thisguide is known as the slipper type.It has but one bearing surface,and this runs in the space betweenSS and A. In the guide the plateP is bolted to the engine frameso that it receives all the cross-head pressure when the engine isrunning ahead. For… … Fig. 59. Sectional View of Marine Engine Cylinder,Piston and Steam Ports
