Steam engines, a thorough and practical presentation of modern steam engine practice (1920)
Ludy, Llewellyn V., 1875-, American Technical Society · Chicago, American technical society · leaf 153

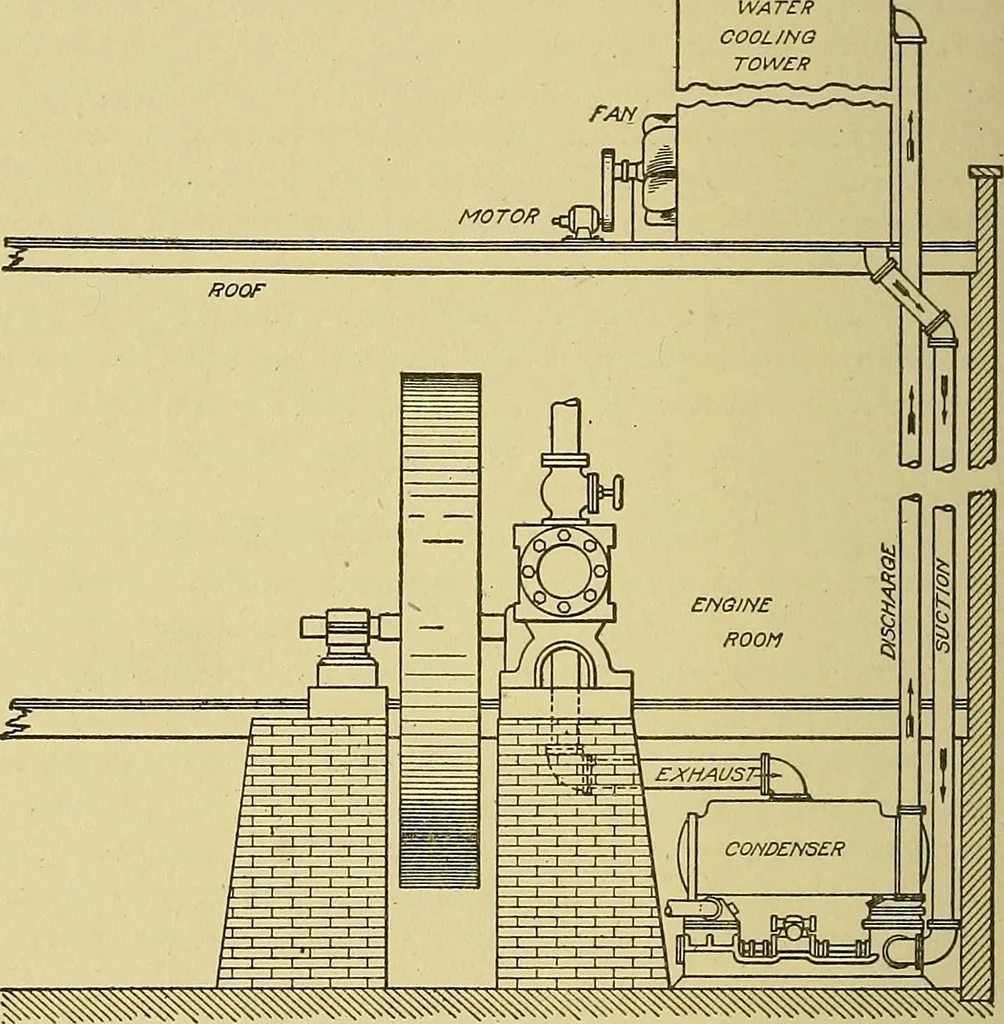

several arrangements and be made of vari-ous materials. A satisfactory form is constructed of steel plates 136 STEAM ENGINES within the tower, or a large number of mats of steel wire cloth gal-vanized after weaving. The tower may be supported upon a properfoundation or upon legs, instead of being… … Fig. 83. Diagram of Stationary Engine with Connections to Water Cooling Tower onRoof of Building lower part of the tower and upward through the mats. This fanmay be driven by an electric motor, by a line of shafting, or by asmall independent engine. In case the fan is not used, the mats are…
Steam-engines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
