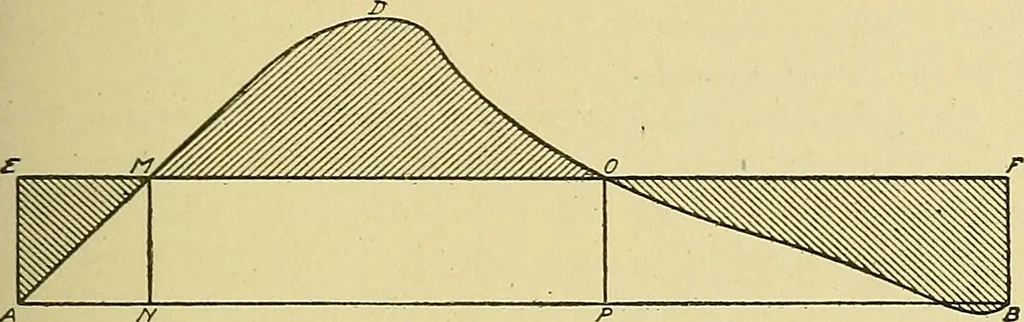

long period be considered, the mean effortand the mean resistance must be equal; but during this period thereare temporary changes of effort, the excesses causing increase ofspeed. To moderate these fluctuations several methods are employed. The turning moment on the shaft of a single cylinder… … Fig. 84. Graphical Representation of Turning Moment of Crank Shaft ofCylinder Engine for One Stroke Single- the curve. Fig. 84. Near the ends of the stroke the turning momentdiminishes and finally becomes zero. This, of course, tends to causea corresponding change in the speed of rotation of the…
