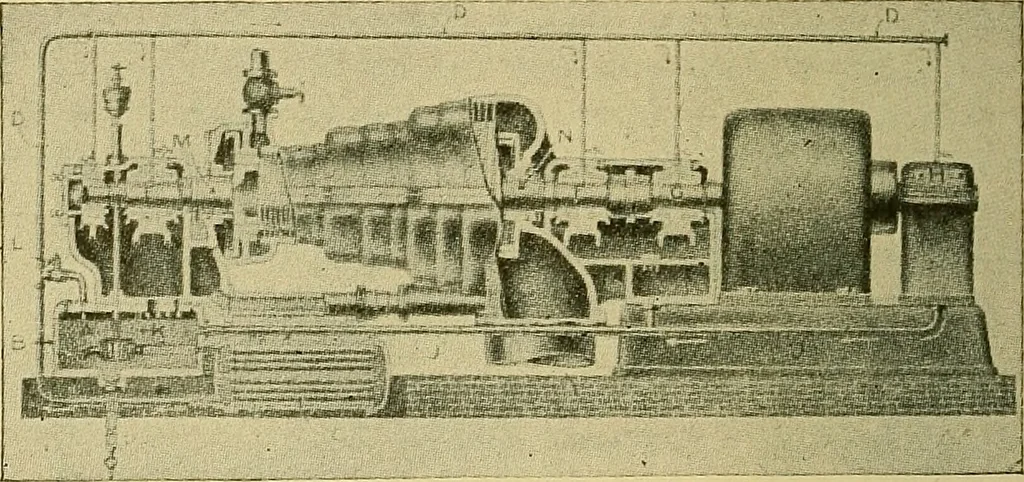

e high-pressure end of the turbine casing. Differentmanufacturers use different forms of packings at this point, butin practically every case some steam escapes which, on coming incontact with the water-cooled bearing at E, condenses and mixeswith the oil. Again, when turbines are operated with a… … Fig. 101 Section of Modern Steam Turbine, Showing Scheme of Operation of Self- Contained Oil Circulating System As a means of getting rid of the water which gets into thesystem, the cock P is provided at the bottom of the reservoir B,from which water collecting at this point can be drawn off.…
