Steam engines, a thorough and practical presentation of modern steam engine practice (1920)
Ludy, Llewellyn V., 1875-, American Technical Society · Chicago, American technical society · leaf 189

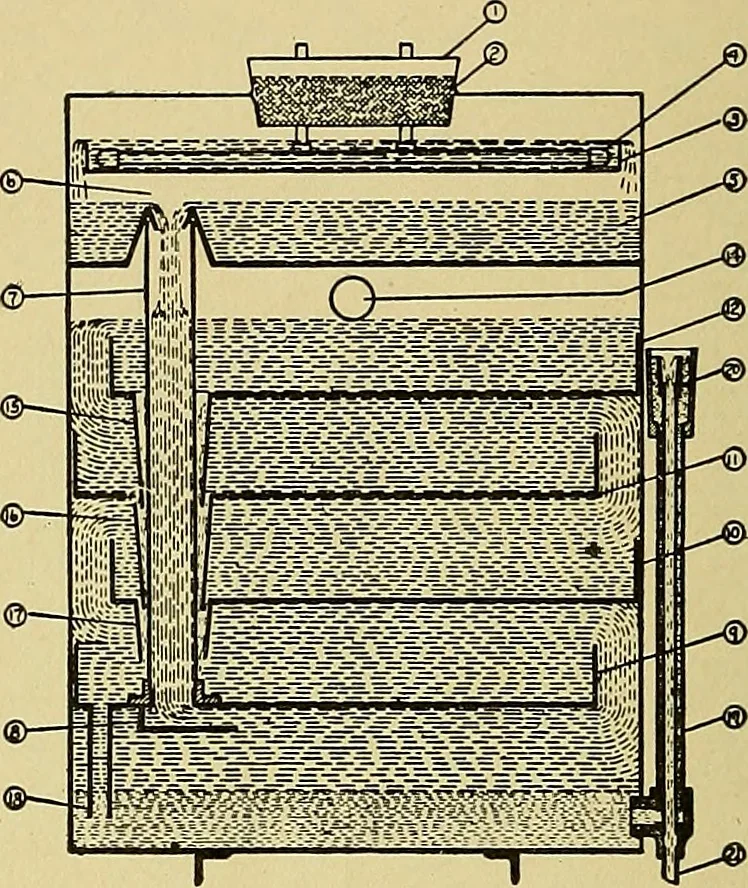

is to operate condensing, the condensershould be started first, if it is in such a position that the water 172 STEAM ENGINES in the exhaust can drain into it. If the condenser is abovethe engine and no means are provided for removing the water, theengine should be started non-condensing. When a jet… … Fig. 103. Drawing Showing Section Througli Precipita-tion Compartment and Automatic Water Ejector ofPower Plant Oil Filter. (See list of Parts) NAMES OF PARTS OF FIGS. 102 AND 103 1—Strainer box for receiving dirty oil; S—Removable strainer; 3—Heating tray; i—Steamheating coil; 5—Dirty oil…
Steam-engines
