Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 274

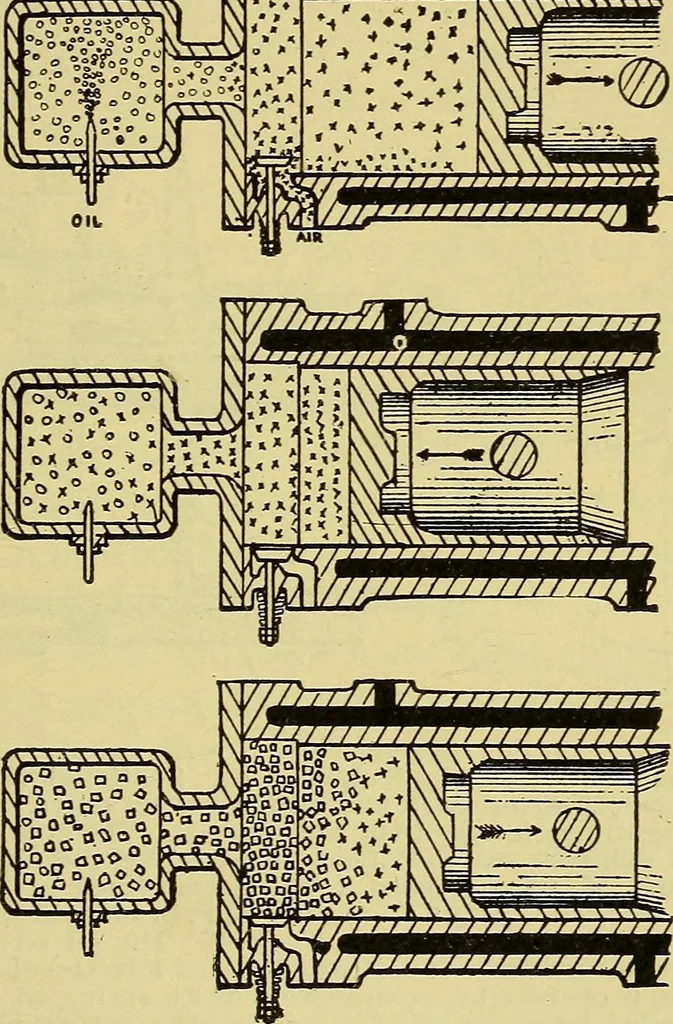

desirable for locomotion. It would also bequite impossible to operate it successfully without such press- 260 METHODS OF IGNITION. 261 ure, or with fuel mixtures produced by any other form of car-buretting device as above described. Firing the Charge by Hot Head.—Another method of ignit-ing the… … Fig. 178.—Diagram of the Hornsby-Akroyd Ignition System. At the end of the cylinderis a box, or chamber, connected to it by a narrow neck. During the suction stroke,shown in the first figure, air is drawn into the cyjinder and oil sprayed into the hotigniting chamber. the rear end of the cylinder…
Automobiles
Internet Archive · Boston College Libraries · Public Domain Mark 1.0. Free to use for anything.
