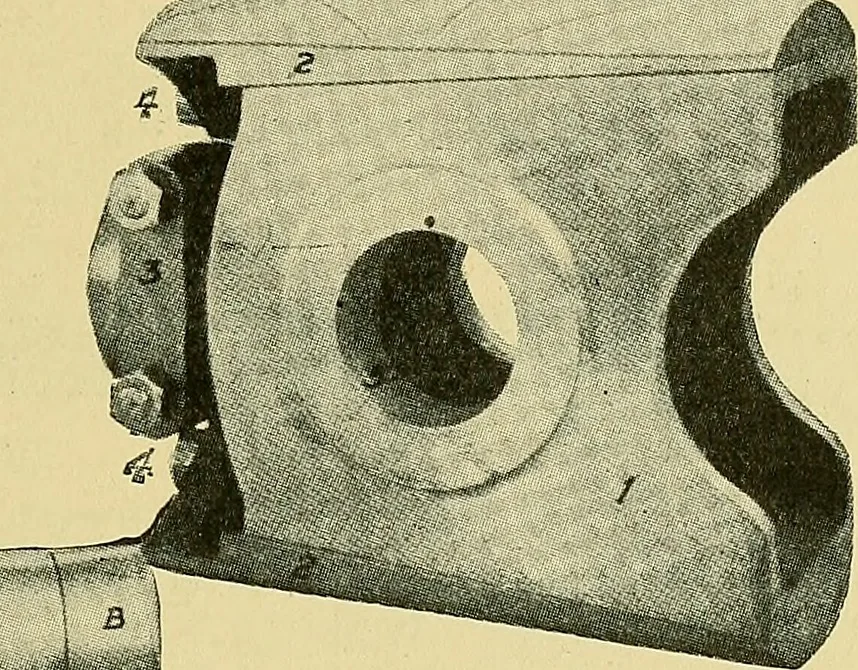

Fig. 14. Typical Crossbead and Pin for Large Size Engine expanded and then ejected through the exhaust opening. Theenergy of the steam is transmitted through the piston and pistonrod to the crosshead 17, Fig. 6, thence to the connecting rod 23,crank pin 33, to the main shaft. In order that these…
