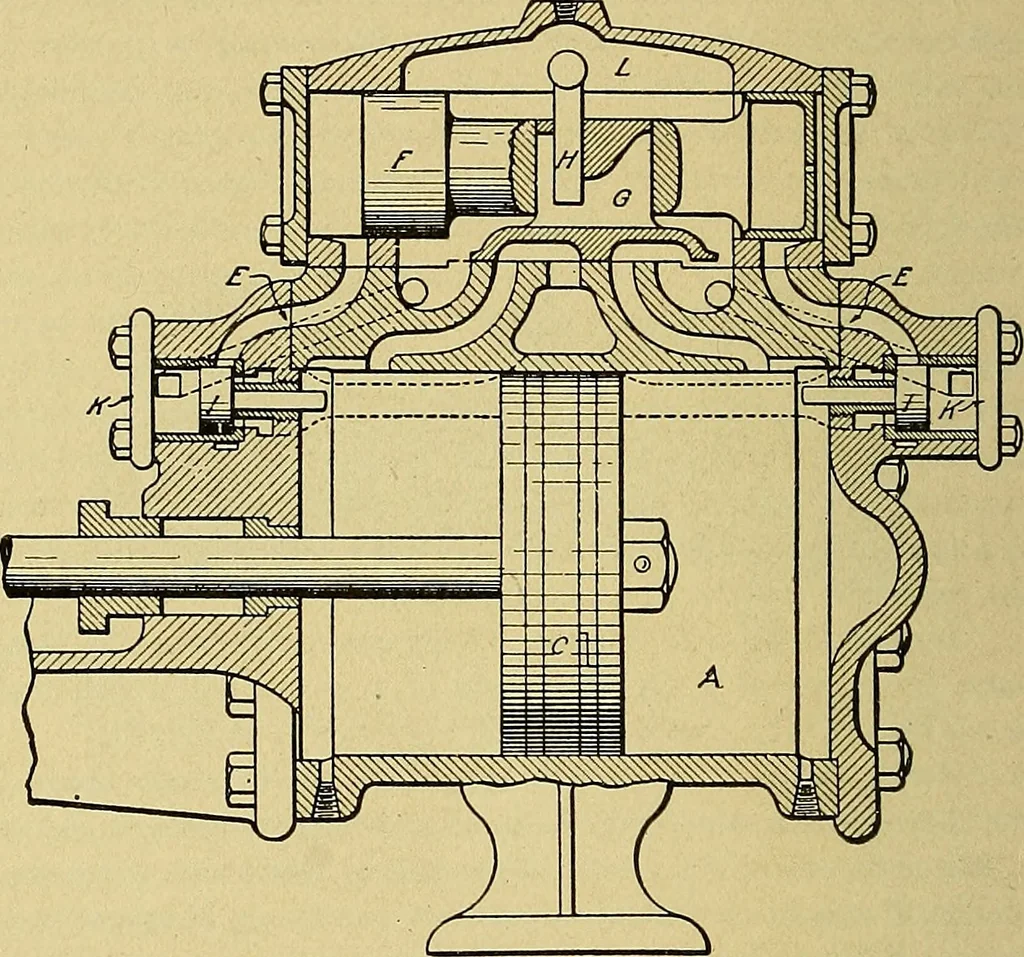

between it and the headsof the steam chest in which it works. Pressure being equal at each 72 STEAM ENGINES end, this plunger F, under ordinary conditions, is balanced andmotionless; but when the main piston C has traveled far enough costrike and open the reverse valve I, the steam exhausts through… … Fig. 51. Section of Pump Cylinder Showing Valve Operated with Tappet must instantly reverse on touching the valve I. In its movementthe plunger F acts as a slide valve to close the port E and is cushionedon the confined steam between the ports and steam-chest cover.The reverse valves II are closed…
