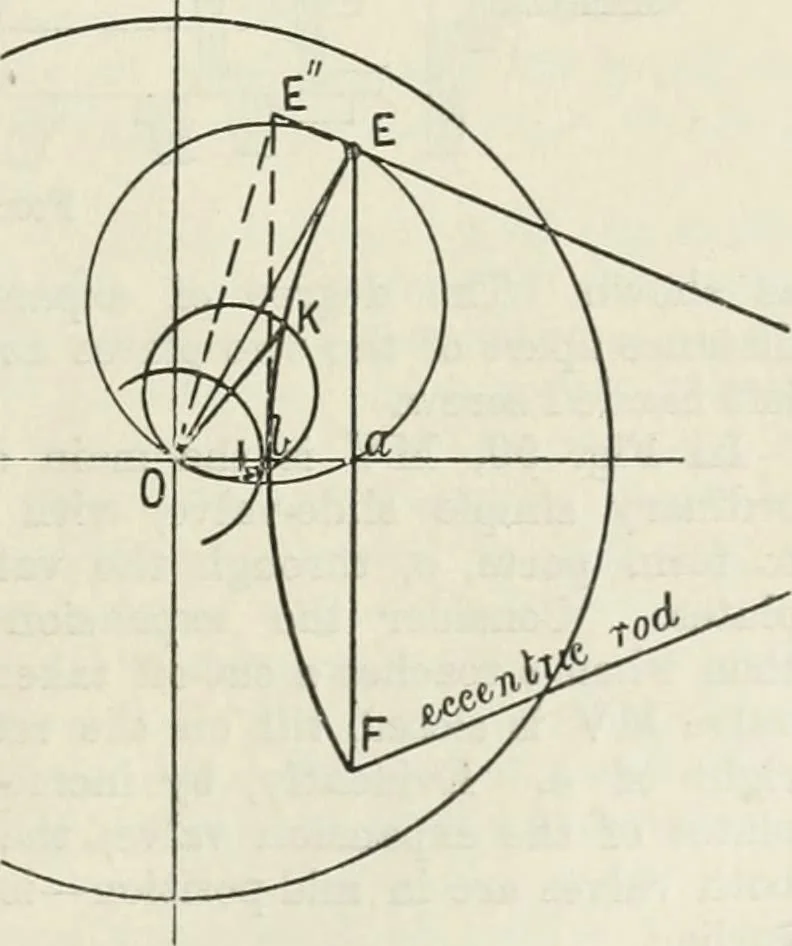

and re - admission take placeearlier. The effect upon the indicatordiagram (Fig. 87) of notchingup the link, or bringing thelink nearer to mid-gear, may becompared with the Zeuner dia-gram for the respective positions.Each operation of the valve,namely, admission, cut-off, release,and compression,… … Fig. 88. Link Motion with Crossed Arms.—When the eccentric rods areattached to the link as shown in Fig. 80, the effect on the steam 84 STEAM-ENGINE THEORY AND PRACTICE. distribution for various positions of the link will be seen from Fig.88. The line EE is drawn at right angles to OE. As…
