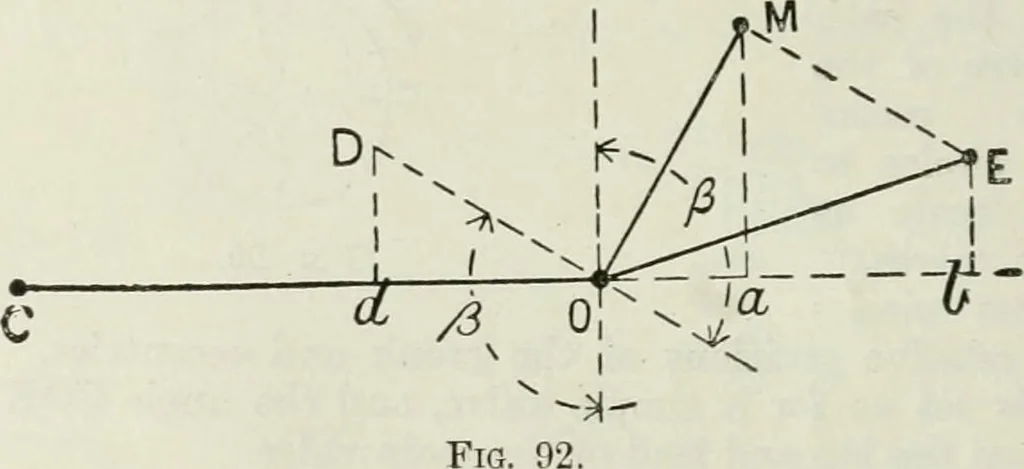

expansion valve with angular anvance ^, then Oa is the distanceof the main valve from its middle position, and 06 the distance of theexpansion valve ; also ab is the distance between the respective centresof the two valves. If now OD, Fig. 92, be drawn equal and parallelto EM, and a perpendicular… … may be considered as an eccentric with angular advance y8 andeccentricity OD, which governs, for any part of its path, the rela-tive position of the centres, or the relative motion of the mainand expansion valves. On OM (Fig. 93) describe the main-valve circle, and on OEdescribe the expansion-valve…
