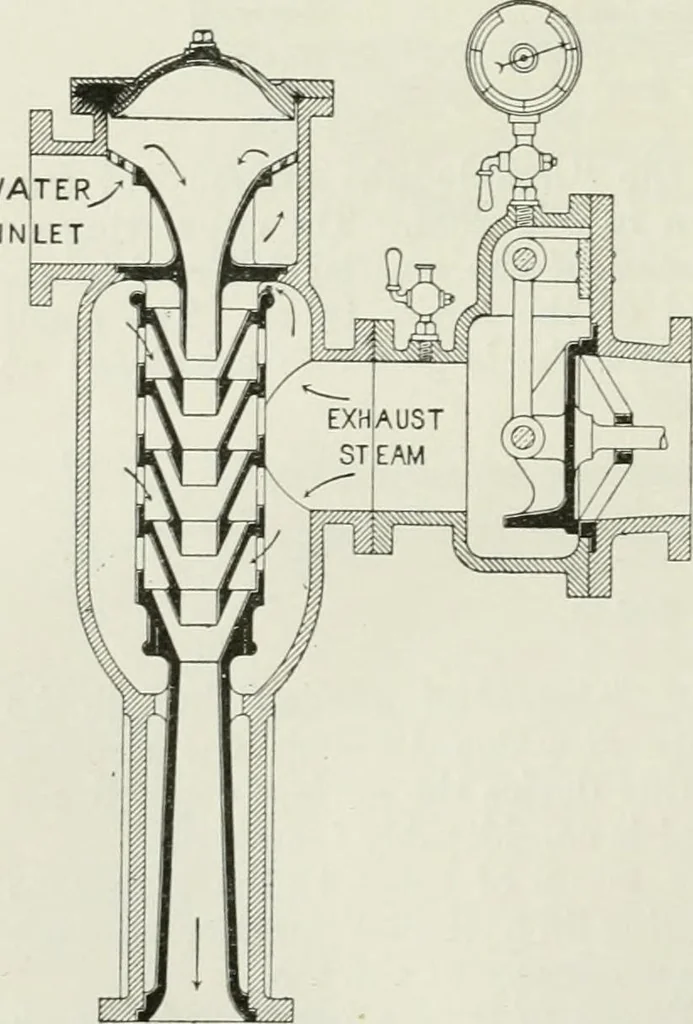

n, and passes forward inthe form of a round solid jetthrough a series of conednozzles, and at a suitable ve-locity obtained from the headof water in the supply pipe. The exhaust steam enteringthe apparatus flows into theannular spaces between thecones, and is condensed bythe stream of cold water… … DISCHARGE Fig. 203. CONDENSERS. i37 must be used to raise the water to the requii-ed height, or to forcethe water direct into the condenser. With this apparatus a vacuum can be obtained before the enginestarts, which is in some cases an advantage. No air-pump is required with the ejector condenser.…
