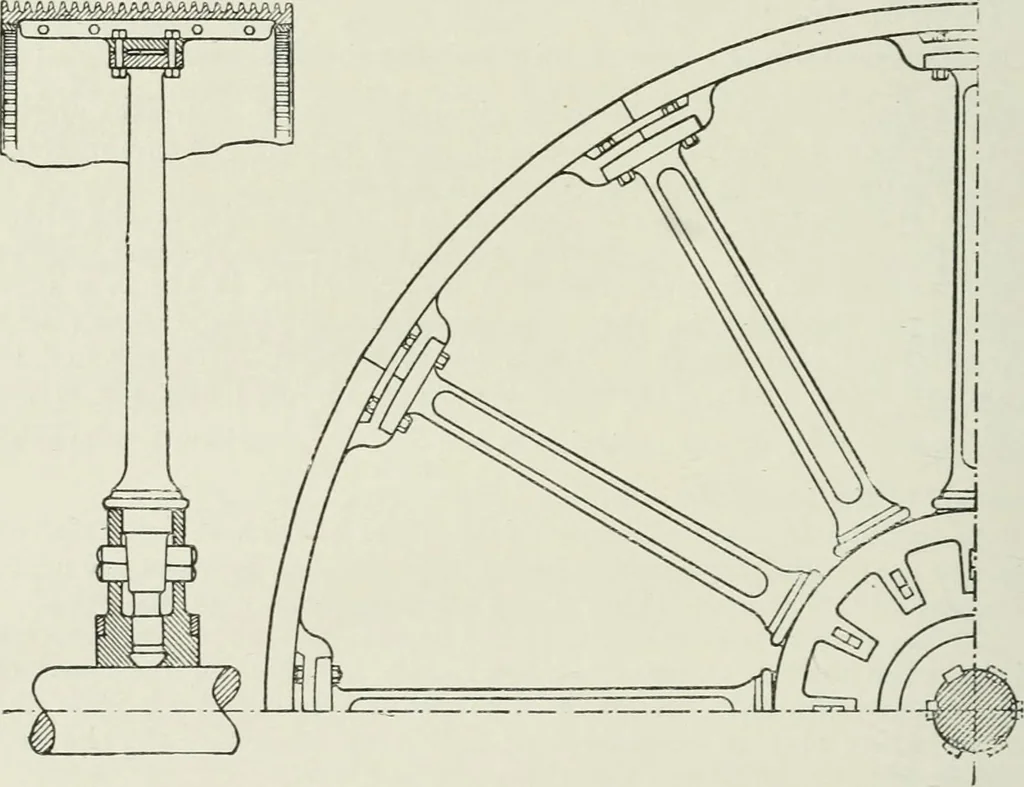

= 468 X 7-5 X 90 X 90 X 0-00034 = 9666o This is the radial force per foot of rim. Resolving this force atright angles to a diameter, then the total force tending to separatethe rim through a diameter = r X d = 9666 5 X 15 = 144997-0 ll)S., 01- 64-7 tons Stress / per square inch in wrought-iron… … Fig. 289. Fig. 289 is a combined flywheel and rope drum as made by Messrs.Musgrave of Bolton. The construction will l)e understood from thedrawing. Fig. 290 is a type of flywheel made for rolling mills in the United FLYWHEELS. 249
Steam-engines
