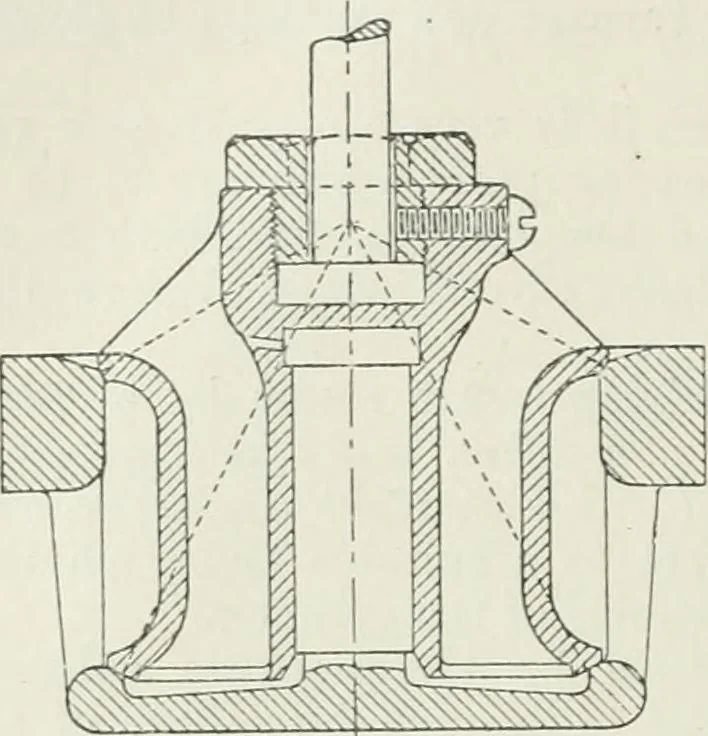

a detaching pad, which is formedon the detaching lever J, keyed on the cut-off spindle L. The cut-off spindle is arranged to give the lever J a movementapproximately the same in direction as the tail of the trigger T, andthe inclined tail runs under the detaching pad and detaches thetrigger from… … resistance to its movement from the gear itself, and it should ])e freeto adjust its position during steam admission. The al>ove arrange-ment is a good example of a detach-, ing-valve gear, suitable for governing on a low percentage of variation. The steam-valve spindle is ex-tended beyond the…
