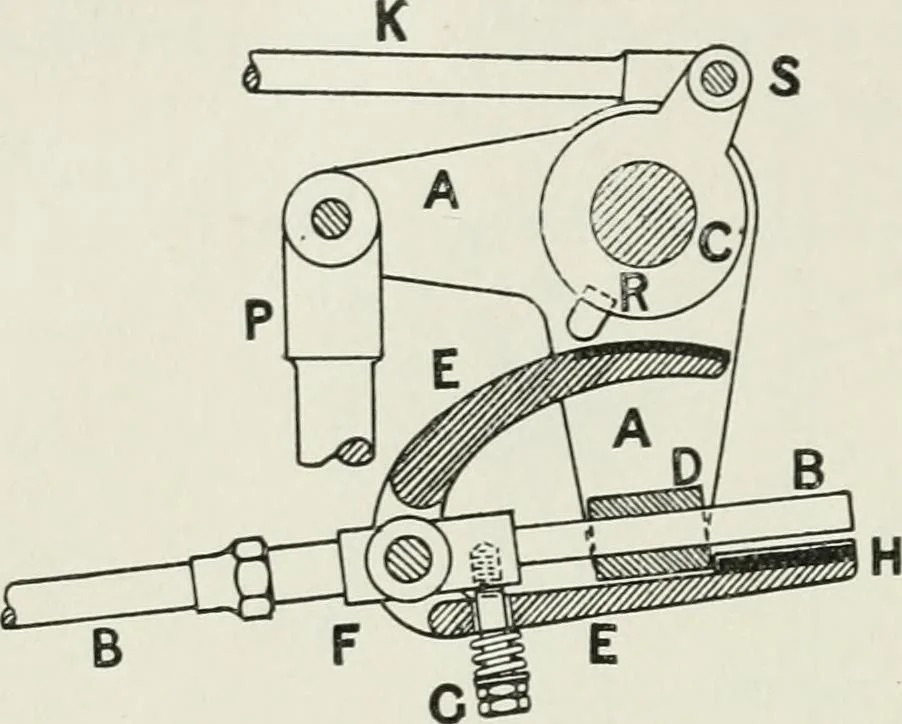

334 STEAM-ENGINE THEORY AND PRACTICE. … Fig. 386. The valve-rod B (Fig. 386) is driven from the wrist-plate. The belLcrank lever AA is securely attached to the valve spindle C. Asquare-headed bolt D, with a hole thiough the square head, is at-tached to the lower lever of the bell-crank A. The valve-rod B passes fi-eely through thehole in…
