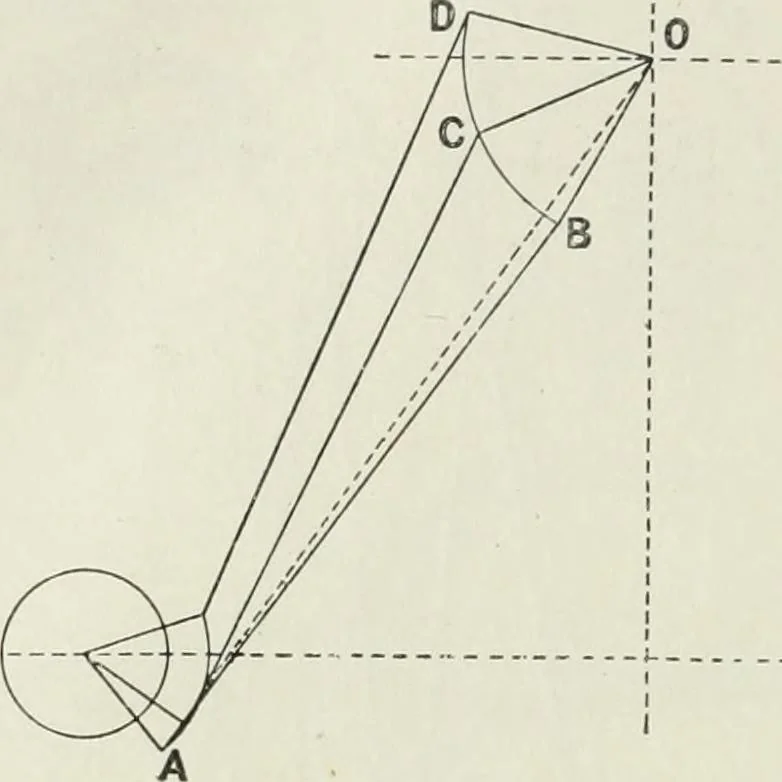

Fig. 387. 336 STEAM-ENGINE THEORY AND PRACTICE. … Fig. 388. Fig. 388 gives a wrist-plate diagram. OD and OB show the ex-treme positions of the levers, and OC mid position. This is a case in which a double reversal of stresstakes place in the levers and pinsduring each forward and back-ward stroke of the wrist-plate.This is shown by the passing…
