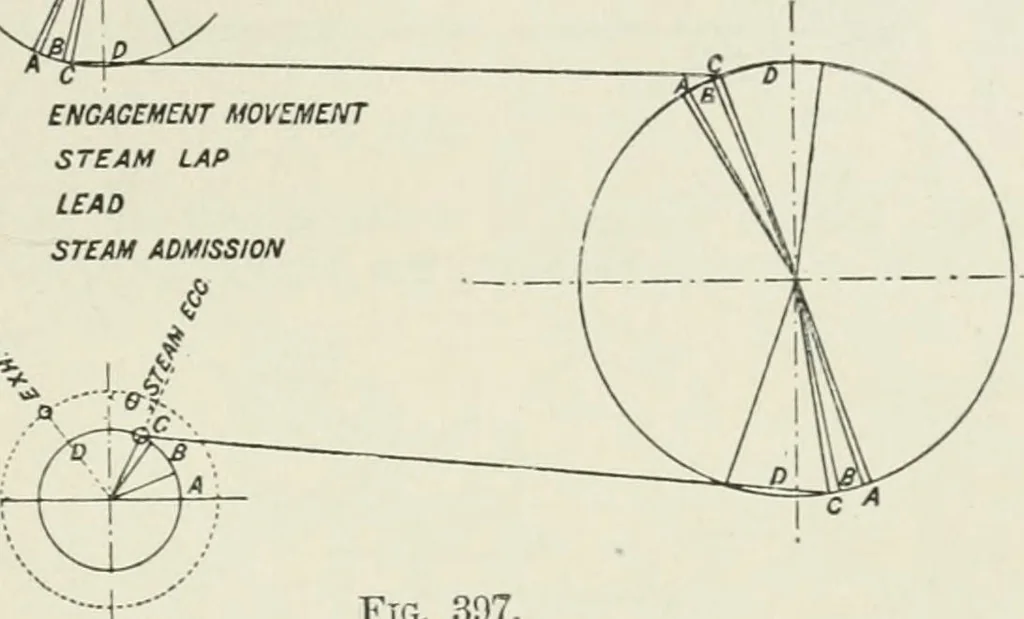

A ENGAGEMENT MOVEMENT B STEAM LAP C LEAD D STEAM ADMISSION %- … Fig. 397. Diagram of Exhaust-valve Movements.—The theoretical indicatordiagram, Fig. 398, is first drawn to decide upon the points of releaseand compression, and the respective position of these points is pro-jected to the crank-pincircle below the indicatordiagram. Radial lines are drawnshowing…
