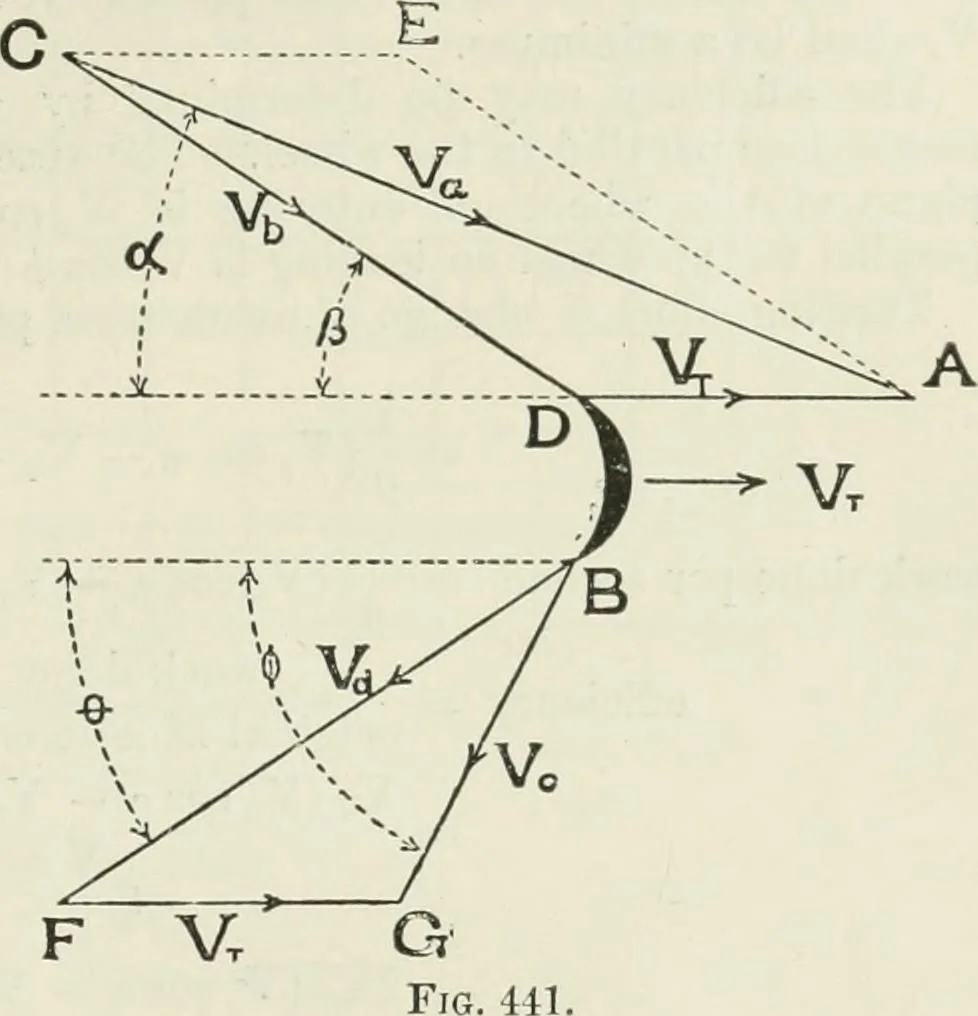

to the moving target — CD. Let BF represent the velocity and direction of the steam leaving theblade, and making in this instance an angle of exit 0 with the plane ofthe wheel e [ual to the angle of entrance /3. If the passage betweenthe blades is parallel, and there is no fall of pressure, then BF… … scale of the entering steam relatively to 402 STEAM-ENGINE THEORY AND PRACTICE. In order that the steain shall flow smoothly on to the vanes ofthe turbine and not strike them abruptly and thereby cause loss byshock, the design must be so arranged that the tangent to theentering surfaces (f the…
