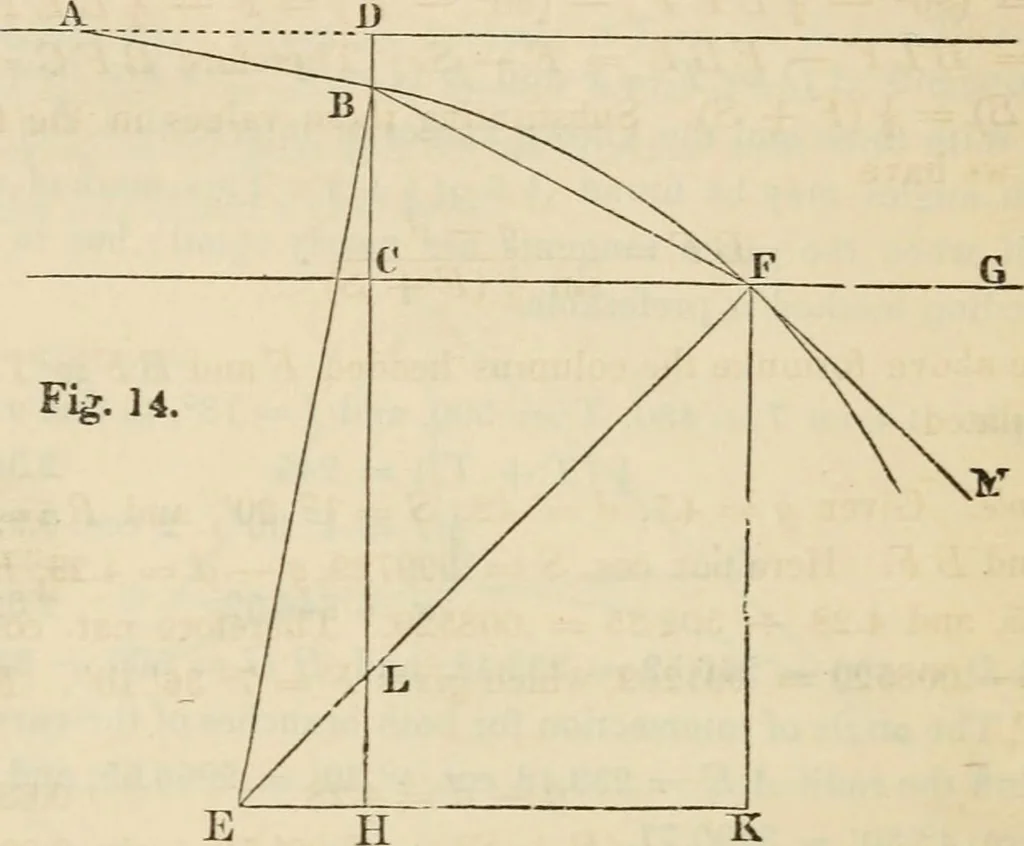

article the gaugeot the track D C. denoted by g, and the distance D B, denoted by dare supposed to be known. The switch angle S is also supposed tobo known, since its sine (Tab. X. 1) is equal to d divided by the lengtu Ori CIRCULAR CURVES. of the switched rail. If, for example, the rail is 18 feet… … Solution. Through die centre E draw E K parallel to the n :track. Draw Ci/and FK perpendicular to E K, and join L F.Then, since E Fis perpendicular io F?,J and FK is perpendicular toFG, the angle E rK = G FIvl = F; and since E B and B H arerespectively perpendicular to A B and A D, the angle E B H…
