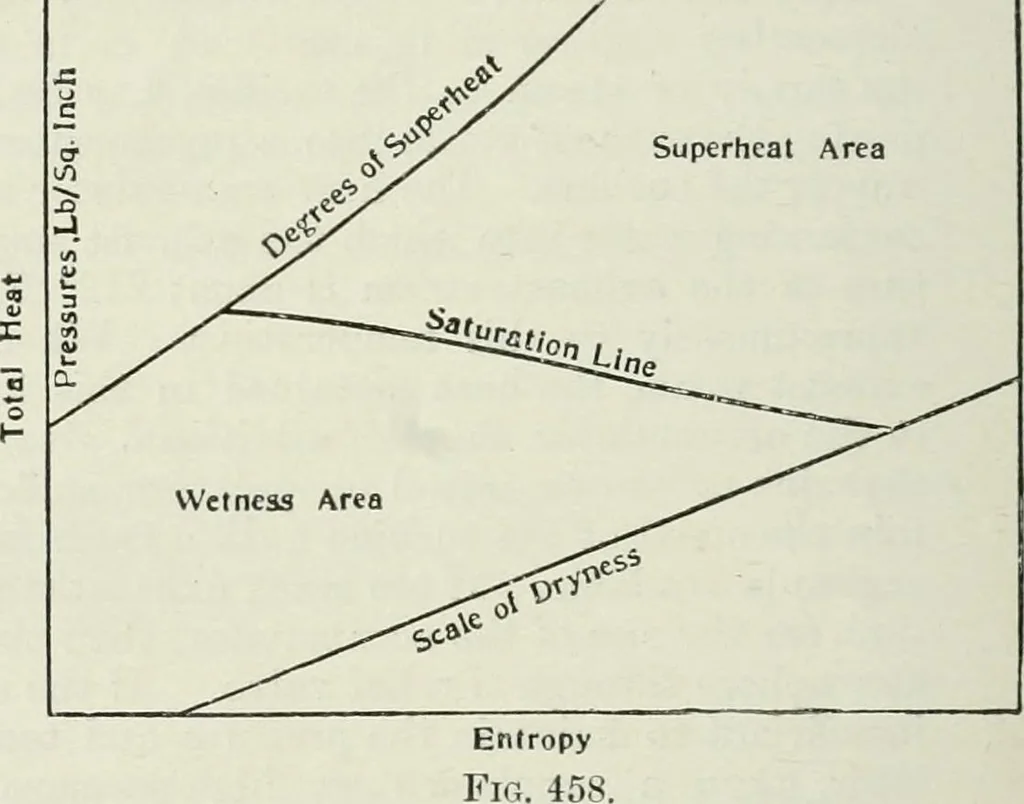

team is drier in the latter case. The additional heat carried away by the steam toexhaust is shown by the area BEFG. The amount of heat thereforeconverted into work is given by the area DABC — FBEG. The Mollier Diagram.—A new form of diagram introduced by Dr.Mollier is of great value and… … Fig. 457. nates instead of temperature and entropy as in the T — <^ diagram.Fig. 458 illustrates the general features of the diagram, and the figureswhich follow illustrate its use for practical purposes. Adiabaticexpansion is represented by vertical lines. There are also drawnupon it lines of…
