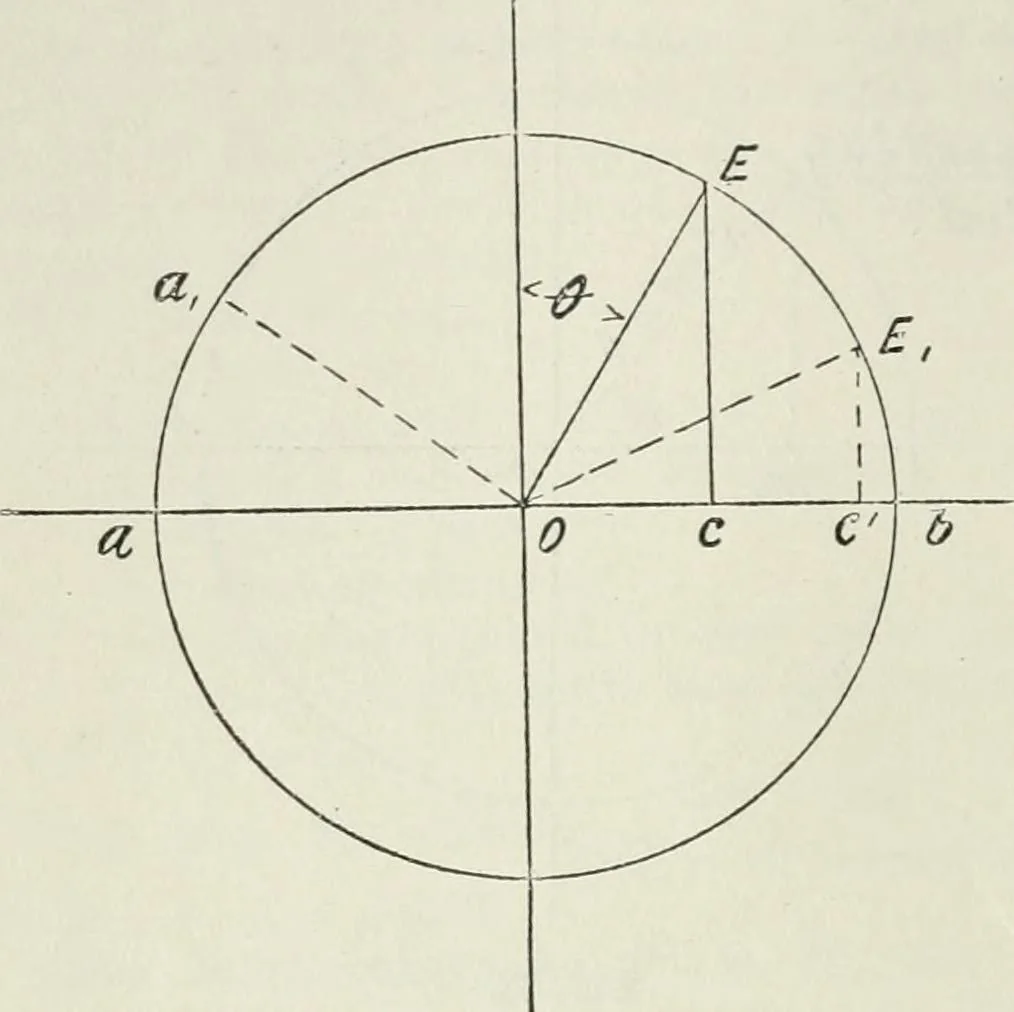

Fig. 64.It will be best understood by reference to the following figures 68 STEAM-ENGINE THEORY AND PRACTICE. Ill Fig. 65, let ah be the travel of the slide-valve, Oa the crankposition, and OE the position of the centre line of the eccentric, … ad-per- FiG. 65 having angularvance B. Then apendicular, Ec, on a&gives Oc, the distanceo^ the valve from itsmid-position. If thecrank-shaft move roundon its centre so that apasses to a^ and E toEl, and Oc is the dis-tance of the A^alve fromits mid - position foreccentiic position OEj.Instead…
