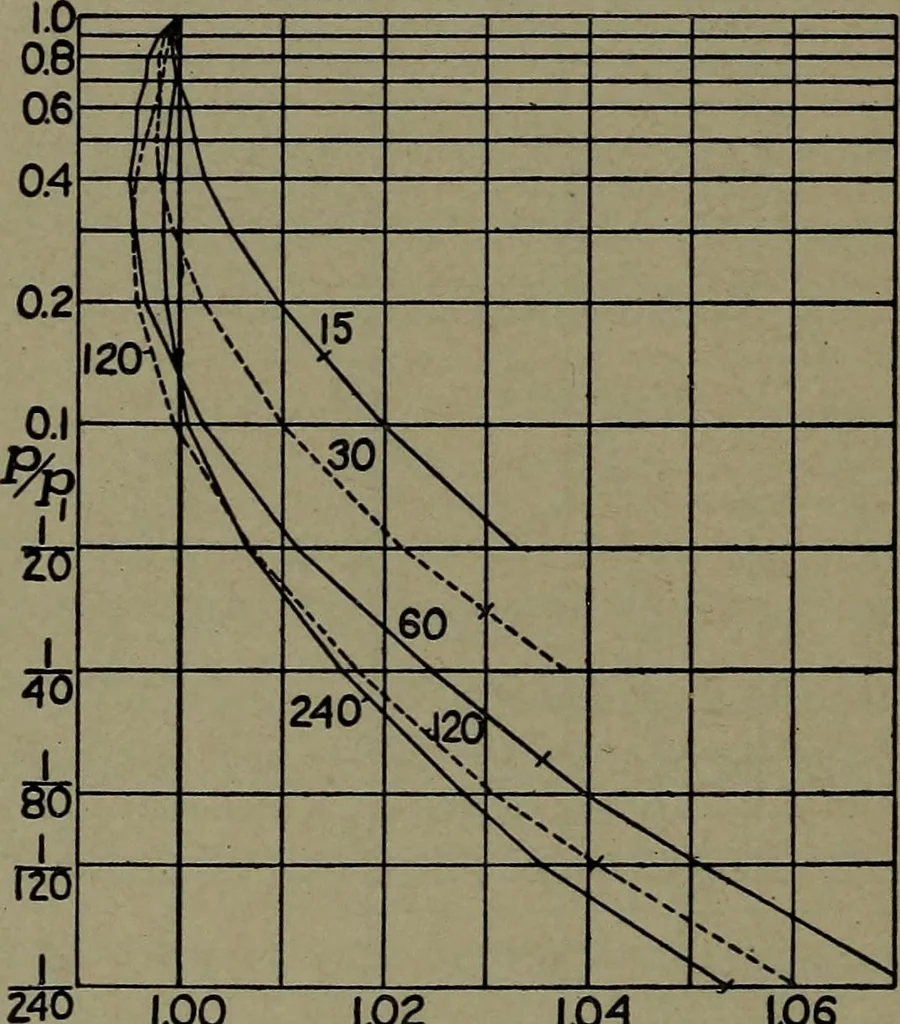

ht predominant as at H,there is condensation as the pressure drops, shown by the swing of the^-constant lines CS and HR from the adiabatic lines CM and HPtoward the right: steam is condensed to supply heat for external work.Starting with hot water as at B or with predominant water weight asat J,… … 1.00 1.02 1.04 1.06 Fig. 50. — Comparison of Adiabatic Curves. Vertical base, ratio v/Vh to a scale made uniform for the logarithm of this ratio;horizontal ordinate, relation between values of the pv ratios in Table 5. water at the start, the two tendencies (toward condensation and…
