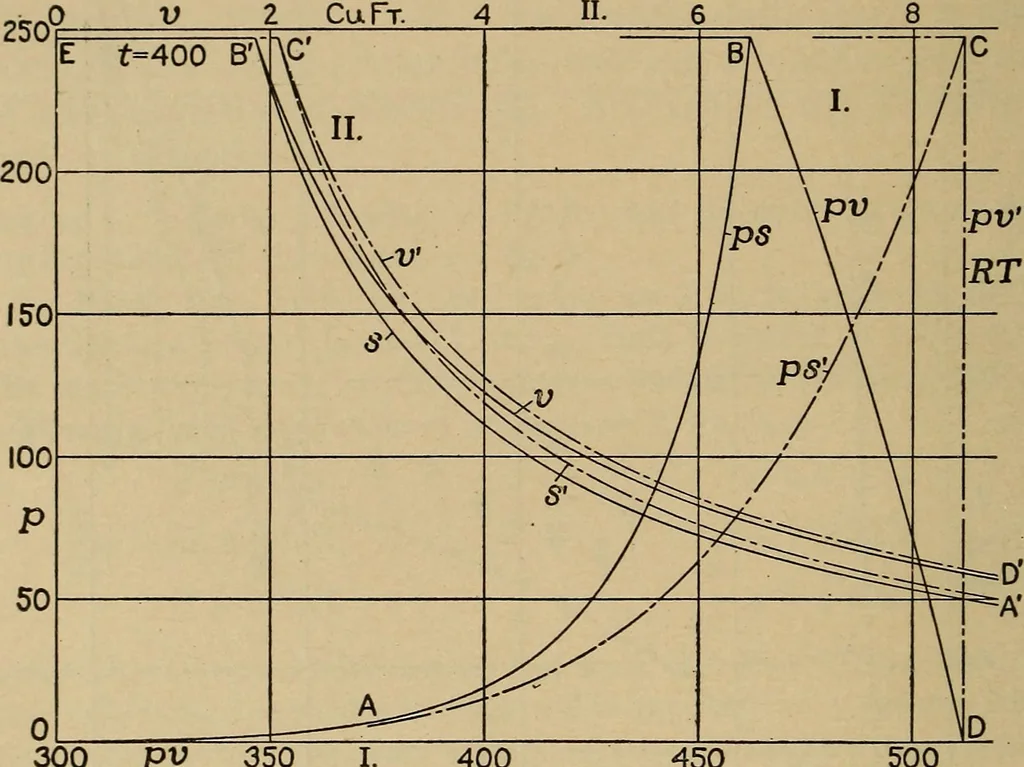

base (vertical), The curves in group Ishow product pv, while those in group II show volume directly. Thesame letters are used on corresponding points of the two groups. Theideal product RT or ys from Eq. (60) now becomes the curve AC,instead of the straight line DE on the temperature base of Fig.… … 300 pv 350 400 450 500 Fig. 44. — Isothermal Curves for Steam, Wet and Superheated. Group I, Plot ofpv on p: Group II, Plot of v on p. In the group of simple volume curves, CA shows the ideal satura-tion volume s, BA the actual volume s\ curve CT> is the ideal iso-thermal pv = C, and BD is the…
